SWI 1008UF Series 1008 inch
Dimensions
Specifications
Chip Size Units: mm
A 2.92 max.
B 2.79 max.
C 2.20 max.
D 1.20 ref.
E 0.55±0.10
Part Number Inductance
( nH) Tolerance Test Frequency( Hz)
Q @Test F
req. min.
I rms (mA)
max. DCR (Ω) max. SRF (MHz) min.
SWI1008UF-10N □ 10 G, J, K 0.1V/50M 50/500 1000 0.08 4100
SWI1008UF-12N □ 12 G, J, K 0.1V/50M 50/500 1000 0.09 3300
SWI1008UF-15N □ 15 G, J, K 0.1V/50M 50/500 1000 0.18 2500
SWI1008UF-18N □ 18 G, J, K 0.1V/50M 50/350 1000 0.11 2500
SWI1008UF-22N □ 22 G, J, K 0.1V/50M 55/350 1000 0.12 2400
SWI1008UF-27N □ 27 G, J, K 0.1V/50M 55/350 1000 0.13 1600
SWI1008UF-33N □ 33 G, J, K 0.1V/50M 60/350 1000 0.14 1600
SWI1008UF-39N □ 39 G, J, K 0.1V/50M 60/350 1000 0.15 1500
SWI1008UF-47N □ 47 G, J, K 0.1V/50M 65/350 1000 0.16 1500
SWI1008UF-56N □ 56 G, J,K 0.1V/50M 65/350 1000 0.18 1300
SWI1008UF-68N □ 68 G, J,K 0.1V/50M 65/350 1000 0.20 1300
SWI1008UF-82N □ 82 G, J,K 0.1V/50M 60/350 1000 0.22 1000
SWI1008UF-R10 □ 100 G, J,K 0.1V/25M 60/350 650 0.56 1000
SWI1008UF-R12 □ 120 G, J,K 0.1V/25M 60/350 650 0.63 950
SWI1008UF-R15 □ 150 G, J,K 0.1V/25M 45/100 580 0.70 850
SWI1008UF-R18 □ 180 G, J,K 0.1V/25M 45/100 620 0.77 750
SWI1008UF-R22 □ 220 G, J,K 0.1V/25M 45/100 500 0.84 700
SWI1008UF-R27 □ 270 G, J,K 0.1V/25M 45/100 500 0.91 600
SWI1008UF-R33 □ 330 G, J,K 0.1V/25M 45/100 450 1.05 570
SWI1008UF-R39 □ 390 G, J,K 0.1V/25M 45/100 470 1.12 500
SWI1008UF-R47 □ 470 G, J,K 0.1V/25M 45/100 470 1.19 450
SWI1008UF-R56 □ 560 G, J,K 0.1V/25M 45/100 400 1.33 415
SWI1008UF-R62 □ 620 G, J,K 0.1V/25M 45/100 300 1.40 375
SWI1008UF-R68 □ 680 G, J,K 0.1V/25M 45/100 400 1.47 375
SWI1008UF-R75 □ 750 G, J,K 0.1V/25M 45/100 360 1.54 360
SWI1008UF-R82 □ 820 G, J,K 0.1V/25M 45/100 400 1.61 350
SWI1008UF-R91 □ 910 G, J,K 0.1V/25M 35/50 380 1.68 320
SWI1008UF-1R0J 1000 J 0.1V/25M 35/50 370 1.75 290
SWI1008UF-1R2 □ 1200 G, J,K 0.1V/7.9M 35/50 310 2.00 250
SWI1008UF-1R5 □ 1500 G, J,K 0.1V/7.9M 28/50 330 2.23 200
SWI1008UF-1R8 □ 1800 G, J,K 0.1V/7.9M 28/50 300 2.60 160
SWI1008UF-2R2 □ 2200 G, J,K 0.1V/7.9M 28/50 280 2.80 160
SWI1008UF-2R7J 2700 J 0.1V/7.9M 22/25 290 3.20 140
SWI1008UF-3R3 □ 3300 G, J,K 0.1V/7.9M 22/25 290 3.40 110
High Frequency Wirewound Chip Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogueare for reference only,TAI-TECH reserves the right toalter or revise the specificationswithout prior
notification.
For the latest specification,please visit our website:www.tai-tech.com.tw

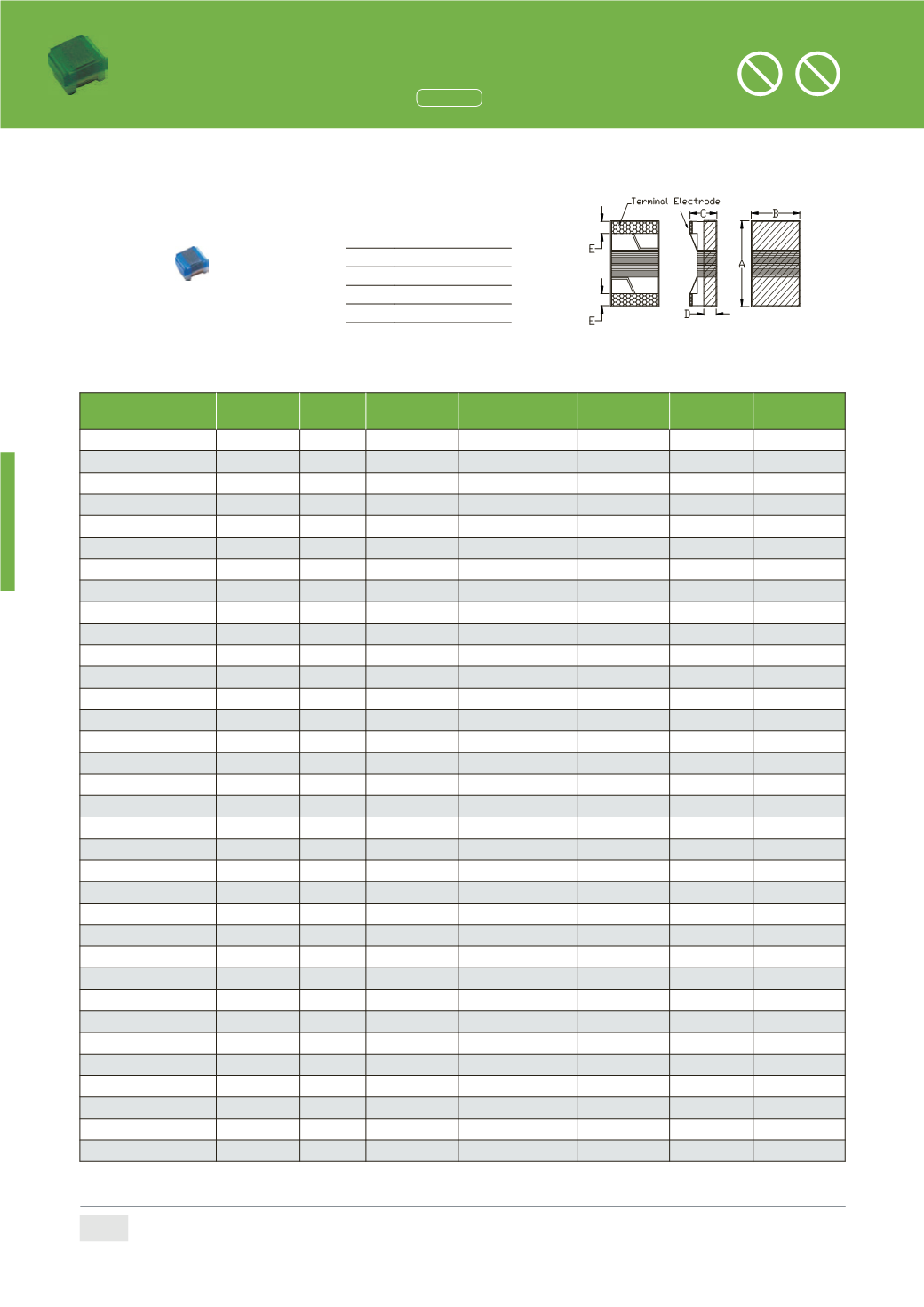

High Frequency Wirewound Chip Inductors
(0402 inch)
 Dimensions
 Specifications
Chip Size
A 1.09±0.10
B 0.60±0.10
C 0.56±0.10
D 0.20±0.15
E 0.23±0.10
Units: mm
Part Number Inductance
(nH) Tolerance Qmin.
Test Frequency
(Hz)
I rms
(mA) max.
DCR
(Ω) max.
SRF
(GHz) min.
SWI0402F-1N0□ 1.0 S.J 16 0.1V/250M 1360 0.045 12.7
SWI0402F-1N9□ 1.9 S.J 16 0.1V/250M 1040 0.070 11.30
SWI0402F-2N0□ 2.0 S.J 16 0.1V/250M 1040 0.070 11.10
SWI0402F-2N2□ 2.2 S.J 19 0.1V/250M 960 0.070 10.80
SWI0402F-2N4□ 2.4 S.J 15 0.1V/250M 790 0.068 10.50
SWI0402F-2N7□ 2.7 S.J 16 0.1V/250M 640 0.120 10.40
SWI0402F-3N3□ 3.3 S.J 19 0.1V/250M 840 0.066 7.00
SWI0402F-3N6□ 3.6 S.J 19 0.1V/250M 840 0.066 6.80
SWI0402F-3N9□ 3.9 S.J 19 0.1V/250M 840 0.066 6.00
SWI0402F-4N3□ 4.3 S.J 18 0.1V/250M 700 0.091 6.00
SWI0402F-4N7□ 4.7 S.J 15 0.1V/250M 640 0.130 4.77
SWI0402F-5N1□ 5.1 S.J 20 0.1V/250M 800 0.083 4.80
SWI0402F-5N6□ 5.6 S.J 20 0.1V/250M 760 0.083 4.80
SWI0402F-6N2□ 6.2 S.J 20 0.1V/250M 760 0.083 4.80
SWI0402F-6N8□ 6.8 S.J 20 0.1V/250M 680 0.083 4.80
SWI0402F-7N5□ 7.5 S.J 22 0.1V/250M 680 0.100 4.80
SWI0402F-8N2□ 8.2 S.J 22 0.1V/250M 680 0.100 4.40
SWI0402F-8N7□ 8.7 S.J 18 0.1V/250M 480 0.200 4.10
SWI0402F-9N0□ 9.0 S.J 22 0.1V/250M 680 0.100 4.16
SWI0402F-9N5□ 9.5 S.J 18 0.1V/250M 480 0.200 4.00
SWI0402F-10N□ 10 J,K 21 0.1V/250M 480 0.200 3.90
SWI0402F-11N□ 11 J,K 24 0.1V/250M 640 0.120 3.68
SWI0402F-12N□ 12 J,K 24 0.1V/250M 640 0.120 3.60
SWI0402F-13N□ 13 J,K 24 0.1V/250M 440 0.210 3.45
SWI0402F-15N□ 15 J,K 24 0.1V/250M 560 0.170 3.28
SWI0402F-16N□ 16 J,K 24 0.1V/250M 560 0.220 3.10
SWI0402F-18N□ 18 J,K 25 0.1V/250M 420 0.230 3.10
SWI0402F-19N□ 19 J,K 24 0.1V/250M 480 0.200 3.04
SWI0402F-20N□ 20 J,K 25 0.1V/250M 420 0.25 3.00
SWI0402F-22N□ 22 J,K 25 0.1V/250M 400 0.30 2.80
SWI0402F-23N□ 23 J,K 22 0.1V/250M 400 0.30 2.72
SWI0402F-24N□ 24 J,K 25 0.1V/250M 400 0.30 2.70
SWI0402F-27N□ 27 J,K 24 0.1V/250M 400 0.30 2.48
76
All the data listed in this catalogue are for reference only, TAI-TECH reserves t
notification.
For the latest specification, please visit our website:www.tai-tech.com.tw
High Frequency Wirewound Chip Inductors
(0402 inch)
 Dimensions
 Specifications
A
B
C
D
E
Units: mm
Part Number Inductance
(nH) Tolerance Qmin.
Test Frequency
( Hz)
I rm
( mA)
SWI0402F-1N0□ 1.0 S.J 16 0.1V/250M 136
SWI0402F-1N9□ 1.9 S.J 16 0.1V/250M 104
SWI04 2F-2N0□ 2. S.J 16 .1V/250M 104
SWI04 2F-2N2□ 2.2 S.J 19 .1V/250M 960
SWI04 2F-2N4□ 2.4 S.J 15 .1V/250M 790
SWI04 2F-2N7□ 2.7 S.J 16 .1V/250M 640
SWI0402F-3N3□ 3.3 S.J 19 .1V/250M 840
SWI0402F-3N6□ 3.6 S.J 19 .1V/250M 840
SWI04 2F-3N9□ 3.9 S.J 19 .1V/250M 840
SWI04 2F-4N3□ 4.3 S.J 18 .1V/250M 700
SWI0402F-4N7□ 4.7 S.J 15 .1V/250M 640
SWI0402F-5N1□ 5.1 S.J 20 .1V/250M 800
SWI0402F-5N6□ 5.6 S.J 20 0.1V/250M 760
SWI0402F-6N2□ 6.2 S.J 20 0.1V/250M 760
SWI0402F-6N8□ 6.8 S.J 20 0.1V/250M 680
SWI0402F-7N5□ 7.5 S.J 22 0.1V/250M 680
SWI0402F-8N2□ 8.2 S.J 22 0.1V/250M 680
SWI0402F-8N7□ 8.7 S.J 18 0.1V/250M 480
SWI0402F-9N0□ 9.0 S.J 22 0.1V/250M 680
SWI0402F-9N5□ 9.5 S.J 18 0.1V/250M 480
SWI0402F-10N□ 10 J,K 21 0.1V/250M 480
SWI0402F-11N□ 11 J,K 24 0.1V/250M 640
SWI0402F-12N□ 12 J,K 24 0.1V/250M 640
SWI0402F-13N□ 13 J,K 24 0.1V/250M 440
SWI0402F-15N□ 15 J,K 24 0.1V/250M 560
SWI0402F-16N□ 16 J,K 24 0.1V/250M 560
SWI0402F-18N□ 18 J,K 25 0.1V/250M 420
SWI0402F-19N□ 19 J,K 24 0.1V/250M 480
SWI0402F-20N□ 20 J,K 25 0.1V/250M 420
SWI0402F-22N□ 22 J,K 25 0.1V/250M 400
SWI0402F-23N□ 23 J,K 22 0.1V/250M 400
SWI0402F-24N□ 24 J,K 25 0.1V/250M 400
SWI0402F-27N□ 27 J,K 24 0.1V/250M 400
76
