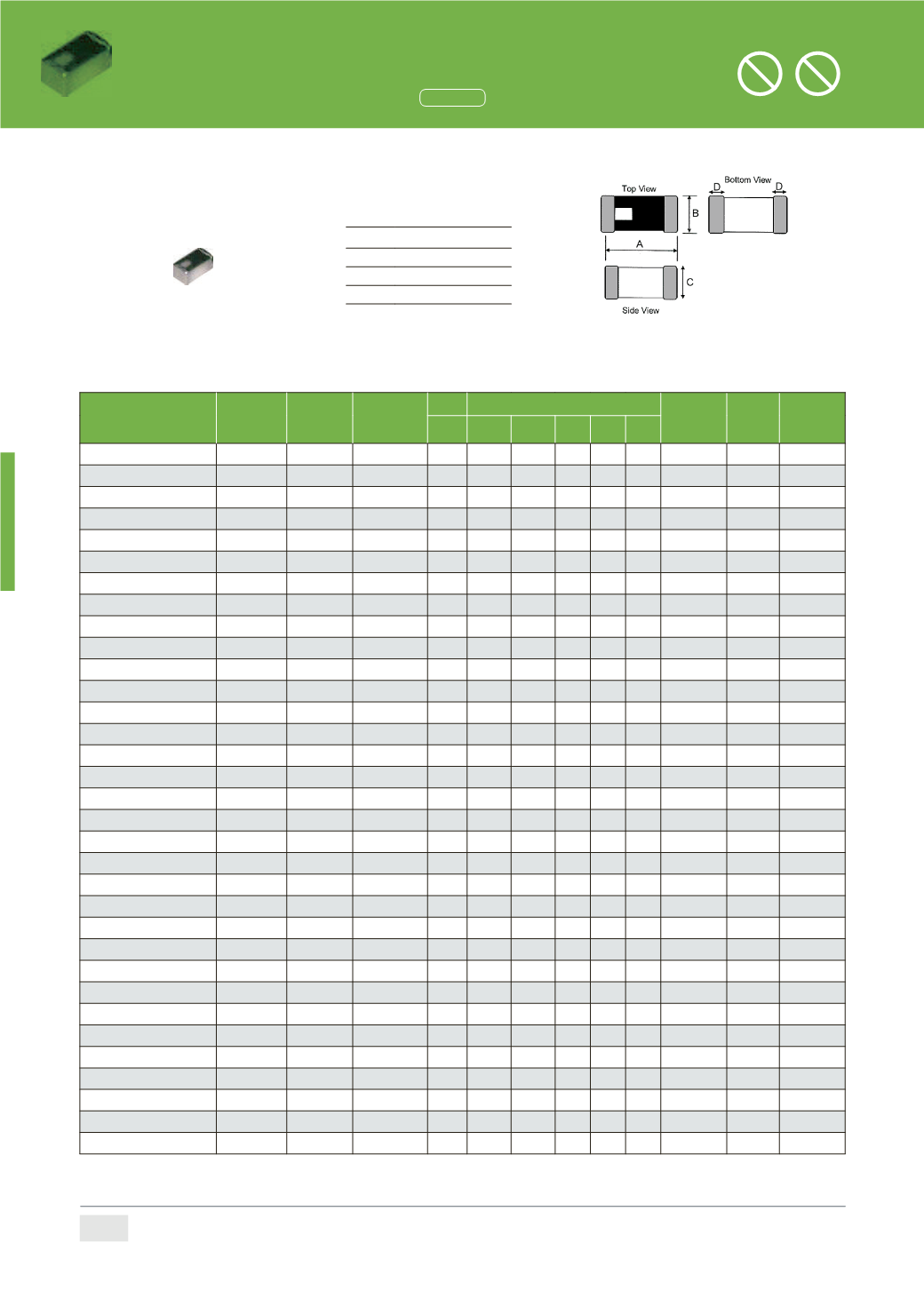

HCI 0603HQ Series 0201 inch
Dimensions
Specifications
Chip Size Units: mm
A 0.60±0.03
B 0.30±0.03
C 0.30±0.03
D 0.10±0.05
Part Number Inductance
( nH) Tolerance
Test
Frequency
( MHz)
Q Q(Typ.) Frequency(Hz) Rated
Current
(mA) max.
DCR(Ω)
max.
SRF(MHz)
min.
min. 500M 800M 1.8G 2.0G 2.4G
HCI0603HQ-0N6 □ -M8 0.6 B, C, S 500 15 30< 40< 75< 80< 88< 850 0.07 10000
HCI0603HQ-0N7 □ -M8 0.7 B, C, S 500 15 30< 40< 75< 80< 88< 850 0.07 10000
HCI0603HQ-0N8 □ -M8 0.8 B, C, S 500 15 30< 40< 75< 80< 88< 850 0.07 10000
HCI0603HQ-0N9 □ -M8 0.9 B, C, S 500 15 30< 40< 75< 80< 88< 760 0.09 10000
HCI0603HQ-1N0 □ -M8 1.0 B, C, S 500 15 30< 40< 75< 80< 88< 680 0.12 10000
HCI0603HQ-1N1 □ -M8 1.1 B, C, S 500 15 30< 40< 75< 80< 88< 750 0.10 10000
HCI0603HQ-1N2 □ -M8 1.2 B, C, S 500 15 30 40 75 80 88 750 0.10 10000
HCI0603HQ-1N3 □ -M8 1.3 B, C, S 500 15 30 40 70 74 85 650 0.12 10000
HCI0603HQ-1N4 □ -M8 1.4 B, C, S 500 15 30 39 65 68 80 650 0.12 10000
HCI0603HQ-1N5 □ -M8 1.5 B, C, S 500 15 30 38 60 63 75 650 0.12 10000
HCI0603HQ-1N6 □ -M8 1.6 B, C, S 500 15 26 34 55 57 70 610 0.14 10000
HCI0603HQ-1N7 □ -M8 1.7 B, C, S 500 15 25 33 53 55 62 610 0.14 10000
HCI0603HQ-1N8 □ -M8 1.8 B, C, S 500 15 25 32 53 55 62 610 0.14 10000
HCI0603HQ-1N9 □ -M8 1.9 B, C, S 500 15 25 32 53 55 62 610 0.14 10000
HCI0603HQ-2N0 □ -M8 2.0 B, C, S 500 15 25 32 53 55 62 610 0.14 10000
HCI0603HQ-2N1 □ -M8 2.1 B, C, S 500 15 25 32 52 54 61 610 0.14 10000
HCI0603HQ-2N2 □ -M8 2.2 B, C, S 500 15 25 32 52 54 61 610 0.14 10000
HCI0603HQ-2N3 □ -M8 2.3 B, C, S 500 15 25 32 52 54 61 560 0.16 10000
HCI0603HQ-2N4 □ -M8 2.4 B, C, S 500 15 25 32 51 53 61 560 0.16 10000
HCI0603HQ-2N5 □ -M8 2.5 B, C, S 500 15 24 32 51 53 60 560 0.16 8500
HCI0603HQ-2N6 □ -M8 2.6 B, C, S 500 15 24 32 50 52 56 560 0.16 8500
HCI0603HQ-2N7 □ -M8 2.7 B, C, S 500 15 23 31 48 49 54 510 0.19 8500
HCI0603HQ-2N8 □ -M8 2.8 B, C, S 500 15 23 31 48 50 53 500 0.20 8500
HCI0603HQ-2N9 □ -M8 2.9 B, C, S 500 15 23 31 48 49 52 500 0.20 8500
HCI0603HQ-3N0 □ -M8 3.0 B, C, S 500 15 22 31 46 47 52 500 0.20 8500
HCI0603HQ-3N1 □ -M8 3.1 B, C, S 500 15 22 30 46 48 52 500 0.20 8500
HCI0603HQ-3N2 □ -M8 3.2 B, C, S 500 15 22 30 46 48 52 500 0.20 8500
HCI0603HQ-3N3 □ -M8 3.3 B, C, S 500 15 22 30 45 46 50 500 0.20 8000
HCI0603HQ-3N4 □ -M8 3.4 B, C, S 500 15 22 30 46 47 50 500 0.20 8000
HCI0603HQ-3N5 □ -M8 3.5 B, C, S 500 15 22 29 45 46 50 500 0.20 8000
HCI0603HQ-3N6 □ -M8 3.6 B, C, S 500 15 22 29 45 46 50 500 0.20 7000
HCI0603HQ-3N7 □ -M8 3.7 B, C, S 500 15 22 28 43 44 48 500 0.20 7000
HCI0603HQ-3N8 □ -M8 3.8 B, C, S 500 15 22 28 43 44 47 500 0.20 7000
High-Q Multilayer Chip Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogueare for reference only,TAI-TECH reserves the right toalter or revise the specificationswithout prior
notification.
For the latest specification,please visit our website:www.tai-tech.com.tw
74
High-Q Multilayer Chip Inductors
(0201 inch)
 Dimensions
 Specifications
Chip Size
A 0.60 ±0.03
B 0.30 ±0.03
C 0.30 ±0.03
D 0.10 ±0.05
Units: mm
Part Number Inductance
(nH) Tolerance
Test
Frequency(MHz)
Q Q(Typ.) Frequency(Hz) Rated Current
(mA) max.
DCR(Ω)
max.
SRF(MHz)
min.
min. 500M 800M 1.8G 2.0G 2.4G
HCI0603HQ-0N6□-M8 0.6 B, C, S 500 15 30< 40< 75< 80< 88< 850 0.07 10000
HCI0603HQ-0N7□-M8 0.7 B, C, S 500 15 30< 40< 75< 80< 88< 850 0.07 10000
HCI0603HQ-0N8□-M8 0.8 B, C, S 500 15 30< 40< 75< 80< 88< 850 0.07 10000
HCI0603HQ-0N9□-M8 0.9 B, C, S 500 15 30< 40< 75< 80< 88< 760 0.09 10000
HCI0603HQ-1N0□-M8 1.0 B, C, S 500 15 30< 40< 75< 80< 88< 680 0.12 10000
CI0603HQ-1N1□- 8 1.1 B, C, S 500 15 30< 40< 75< 80< 88< 750 0.10 10000
HCI0603HQ-1N2□-M8 1.2 B, C, S 500 15 30 40 75 80 88 750 0.10 10000
HCI0603HQ-1N3□-M8 1.3 B, C, S 500 15 30 40 70 74 85 650 0.12 10000
CI0603HQ-1N4□- 8 1.4 B, C, S 500 15 30 39 65 68 80 650 0.12 10000
HCI0603HQ-1N5□-M8 1.5 B, C, S 500 15 30 38 60 63 75 650 0.12 10000
HCI0603HQ-1N6□-M8 1.6 B, C, S 500 15 26 34 55 57 70 610 0.14 10000
HCI0603HQ-1N7□- 8 1.7 B, C, S 500 15 25 33 53 55 62 610 0.14 10000
HCI0603HQ-1N8□-M8 1.8 B, C, S 500 15 25 32 53 55 62 610 0.14 10000
HCI0603HQ-1N9□-M8 1.9 B, C, S 500 15 25 32 53 55 62 610 0.14 10000
HCI0603HQ-2N0□-M8 2.0 B, C, S 500 15 25 32 53 55 62 610 0.14 10000
HCI0603HQ-2N1□-M8 2.1 B, C, S 500 15 25 32 52 54 61 610 0.14 10000
CI0603HQ-2N2□- 8 2.2 B, C, S 500 15 25 32 52 54 61 610 0.14 10000
HCI0603HQ-2N3□-M8 2.3 B, C, S 500 15 25 32 52 54 61 560 0.16 10000
HCI0603HQ-2N4□-M8 2.4 B, C, S 500 15 25 32 51 53 61 560 0.16 10000
CI0603HQ-2N5□- 8 2.5 B, C, S 500 15 24 32 51 53 60 560 0.16 8500
HCI0603HQ-2N6□-M8 2.6 B, C, S 500 15 24 32 50 52 56 560 0.16 8500
HCI0603HQ-2N7□-M8 2.7 B, C, S 500 15 23 31 48 49 54 510 0.19 8500
CI0603HQ-2N8□- 8 2.8 B, C, S 500 15 23 31 48 50 53 500 0.20 8500
HCI0603HQ-2N9□-M8 2.9 B, C, S 500 15 23 31 48 49 52 500 0.20 8500
HCI0603HQ-3N0□-M8 3.0 B, C, S 500 15 22 31 46 47 52 500 0.20 8500
HCI0603HQ-3N1□-M8 3.1 B, C, S 500 15 22 30 46 48 52 500 0.20 8500
HCI0603HQ-3N2□-M8 3.2 B, C, S 500 15 22 30 46 48 52 500 0.20 8500
HCI0603HQ-3N3□-M8 3.3 B, C, S 500 15 22 30 45 46 50 500 0.20 8000
HCI0603HQ-3N4□-M8 3.4 B, C, S 500 15 22 30 46 47 50 500 0.20 8000
□：B=±0.1nH , C=±0.2nH , S=±0.3 nH
● Rated current: based on temperature rise test
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alt
notification.
For the latest specification, please visit our website:www.tai-tech.com.tw
74
High-Q Multilayer Chip Inductors
(0201 inch)
 Dimensions
 Specifications
Chip
A
B
C
D
Units: mm
Part Number Inductance
( nH)
Tolerance
Test
Frequency
(MHz)
Q Q(Typ.) Frequency(Hz) Rat
(
min. 500M 800M 1.8G 2.0G 2.4G
HCI0603HQ-0N6□-M8 0.6 B, C, S 500 15 30< 40< 75< 80< 88<
HCI0603HQ-0N7□-M8 0.7 B, C, S 500 15 30< 40< 75< 80< 88<
HCI0603HQ-0N8□-M8 0.8 B, C, S 500 15 30< 40< 75< 80< 88<
HCI0603HQ-0N9□-M8 0.9 B, C, S 500 15 30< 40< 75< 80< 88<
HCI0603HQ-1N0□-M8 1.0 B, C, S 500 15 30< 40< 75< 80< 88<
HCI0603HQ-1N1□-M8 1.1 B, C, S 500 15 30< 40< 75< 80< 88<
HCI060 HQ-1N2□-M8 1.2 B, C, S 500 15 30 40 75 80 88
HCI0603HQ-1N3□-M8 1.3 B, C, S 500 15 30 40 70 74 85
HCI0603HQ-1N4□-M8 1.4 B, C, S 500 15 30 39 65 68 80
HCI0603HQ-1N5□-M8 1.5 B, C, S 500 15 30 38 60 63 75
HCI0603HQ-1N6□-M8 1.6 B, C, S 500 15 26 34 55 57 70
HCI0603HQ-1N7□-M8 1.7 B, C, S 500 15 25 33 53 55 62
HCI0603HQ-1N8□-M8 1.8 B, C, S 500 15 25 32 53 55 62
HCI0603HQ-1N9□-M8 1.9 B, C, S 500 15 25 32 53 55 62
HCI0603HQ-2N0□-M8 2.0 B, C, S 500 15 25 32 53 55 62
HCI0603HQ-2N1□-M8 2.1 B, C, S 500 15 25 32 52 54 61
HCI0603HQ-2N2□-M8 2.2 B, C, S 500 15 25 32 52 54 61
HCI0603HQ-2N3□-M8 2.3 B, C, S 500 15 25 32 52 54 61
HCI0603HQ-2N4□-M8 2.4 B, C, S 500 15 25 32 51 53 61
HCI0603HQ-2N5□-M8 2.5 B, C, S 500 15 24 32 51 53 60
HCI0603HQ-2N6□-M8 2.6 B, C, S 500 15 24 32 5 52 56
HCI0603HQ-2N7□-M8 2.7 B, C, S 500 15 23 31 48 49 54
HCI0603HQ-2N8□-M8 2.8 B, C, S 500 15 23 31 48 50 53
HCI0603HQ-2N9□-M8 2.9 B, C, S 500 15 23 31 48 49 52
HCI0603HQ-3N0□-M8 3.0 B, C, S 500 15 22 31 46 47 52
HCI0603HQ-3N1□-M8 3.1 B, C, S 500 15 22 30 46 48 52
HCI0603HQ-3N2□-M8 3.2 B, C, S 500 15 22 30 46 48 52
HCI0603HQ-3N3□-M8 3.3 B, C, S 500 15 22 30 45 46 50
HCI0603HQ-3N4□-M8 3.4 B, C, S 500 15 22 30 46 47 50
□：B=±0.1nH , C=±0.2nH , S=± 0.3nH
● Rated current: based on temperature rise test
□：B=± 0.1nH , C=±0.2nH , S=±0.3nH , H= ±3% , J=± 5%
● Rated current: based on temperature rise test
