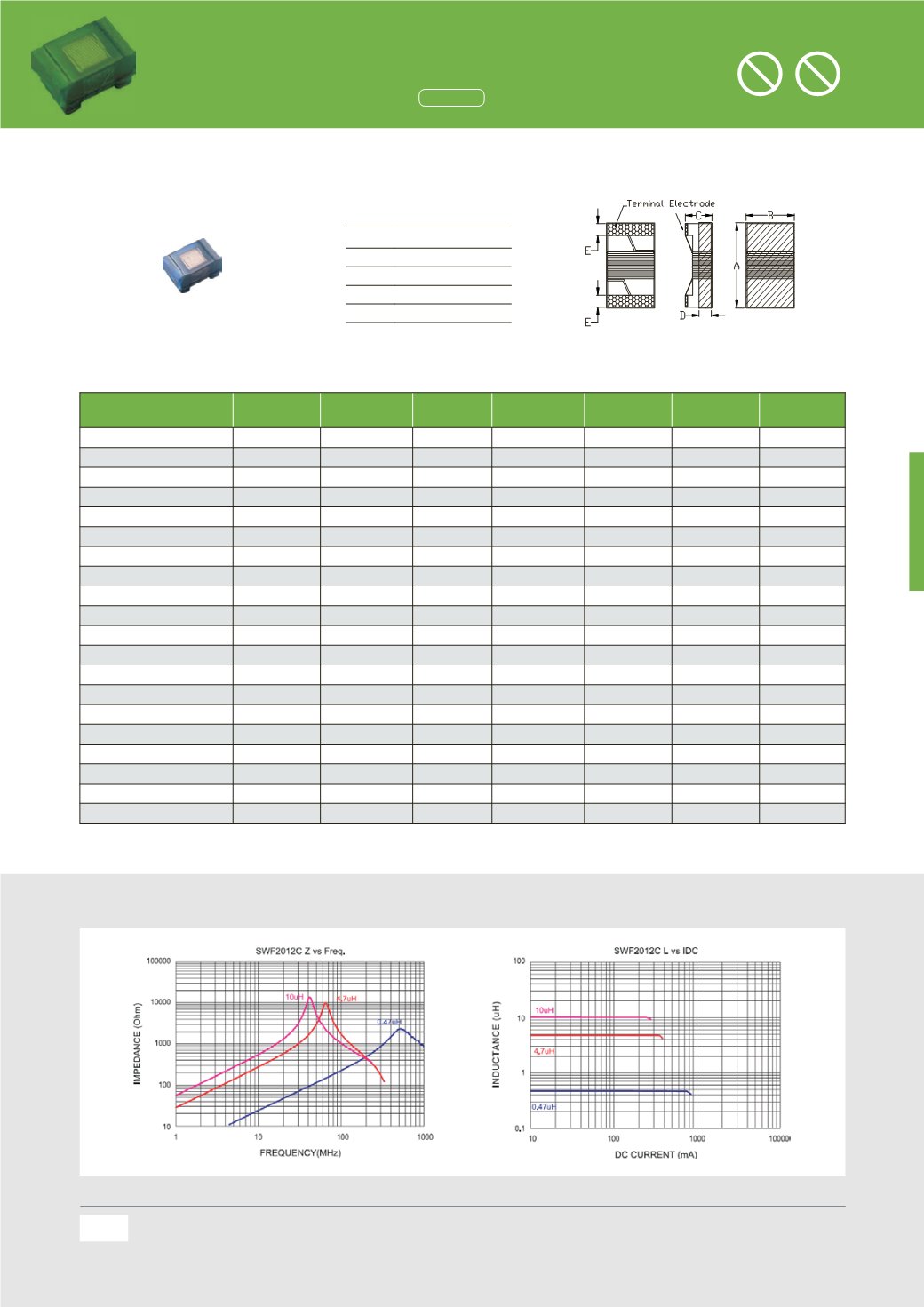

Impedance vs Frequency, DC Bias Characteristics (Typical)
SWF 2012CF Series
0805
inch
Dimensions
Specifications
Chip Size
Units: mm
A
2.40
max.
B
1.60
max.
C
1.40
max.
D
0.51
ref.
E
0.44
±0.10
Part Number
Inductance
(
uH)
Test Frequency
(
Hz)
Q min.
Test Frequency
(
MHz)
SRF (MHz)
min.
DC Resistance
(
Ω
)
max.
Rated Current
(
mA) max.
SWF2012CF-R47
□
0.47
0.5
V/7.96M
10
7.96
720
0.20
750
SWF2012CF-R56
□
0.56
0.5
V/7.96M
10
7.96
665
0.21
730
SWF2012CF-R68
□
0.68
0.5
V/7.96M
10
7.96
565
0.28
670
SWF2012CF-1R0
□
1.00
0.5
V/7.96M
10
7.96
525
0.34
615
SWF2012CF-1R2
□
1.20
0.5
V/7.96M
10
7.96
473
0.39
550
SWF2012CF-1R5
□
1.50
0.5
V/7.96M
10
7.96
300
0.45
520
SWF2012CF-2R2
□
2.20
0.5
V/7.96M
10
7.96
215
0.67
420
SWF2012CF-3R3
□
3.30
0.5
V/7.96M
10
7.96
95
0.81
385
SWF2012CF-3R9
□
3.90
0.5
V/7.96M
10
7.96
57
0.88
372
SWF2012CF-4R7
□
4.70
0.5
V/7.96M
10
7.96
51
0.99
345
SWF2012CF-5R6
□
5.60
0.5
V/7.96M
10
7.96
44
1.06
335
SWF2012CF-6R8
□
6.80
0.5
V/7.96M
10
7.96
39
1.21
315
SWF2012CF-8R2
□
8.20
0.5
V/7.96M
10
7.96
33
1.33
295
SWF2012CF-100
□
10.0
0.5
V/2.52M
10
2.52
30
1.79
260
SWF2012CF-120
□
12.0
0.5
V/2.52M
10
2.52
27
1.98
250
SWF2012CF-150
□
15.0
0.5
V/2.52M
10
2.52
22
2.68
215
SWF2012CF-180
□
18.0
0.5
V/2.52M
10
2.52
20
3.12
195
SWF2012CF-220
□
22.0
0.5
V/2.52M
10
2.52
18
3.48
180
SWF2012CF-270
□
27.0
0.5
V/2.52M
10
2.52
16
3.84
170
SWF2012CF-330
□
33.0
0.5
V/2.52M
10
2.52
15
4.34
145
□
:
K=
±
10% ,
M=
±
20%
Wirewound Ferrite Chip Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogueare for reference only,TAI-TECH reserves the right toalter or revise the specificationswithout prior
notification.
For the latest specification,please visit our website:www.tai-tech.com.tw
Wirewound Ferrite Chip Inductors
(0603
inch)
Dimensions
Specifications
Chip Size
A
1.80
max.
B
1.20
max.
C
1.20
max.
D
0.38
ref.
E
0.35
±0.10
Units: mm
Impedance vs Frequency, DC Bias Characteristics (Typical)
Part Number
Inductance
(
uH)
Test Frequency
(
Hz)
Q
min.
Test Frequency
(
MHz)
SRF
(
MHz) min.
DC
Resistance
(
Ω
)
max.
Rated Current
(
mA) max.
SWF1608CF-47N
□
0.047
0.5
V/7.96M 10
7.96
1500
0.075
1400
SWF1608CF-R10
□
0.10
0.5
V/7.96M 10
7.96
1150
0.13
1400
SWF1608CF-R12
□
0.12
0.5
V/7.96M 10
7.96
1100
0.15
1400
SWF1608CF-R15
□
0.15
0.5
V/7.96M 10
7.96
1050
0.15
1300
SWF1608CF-R22
□
0.22
0.5
V/7.96M 10
7.96
800
0.15
950
SW 1608CF-R27
□
0.27
0.5
V/7.96M 10
7.96
775
0.20
710
SWF1608CF-R33
□
0.33
0.5
V/7.96M 10
7.96
725
0.35
620
SWF1608CF-R39
□
0.39
0.5
V/7.96M 10
7.96
620
0.39
600
SWF1608CF-R47
□
0.47
0.5
V/7.96M 10
7.96
540
0.43
570
SW 1608CF-R56
□
0.56
0.5
V/7.96M 10
7.96
525
0.47
550
SWF1608CF-R68
□
0.68
0.5
V/7.96M 10
7.96
460
0.52
470
SWF1608CF-R82
□
0.82
0.5
V/7.96M 10
7.96
410
0.69
400
SWF1608CF-1R0
□
1.0
0.5
V/7.96M 10
7.96
190
0.81
400
SW 1608CF-1R2
□
1.2
0.5
V/7.96M 10
7.96
160
0.87
370
SWF1608CF-1R5
□
1.5
0.5
V/7.96M 10
7.96
100
0.96
350
SWF1608CF-2R2
□
2.2
0.5
V/7.96M 10
7.96
68
1.20
320
SWF1608CF-3R3
□
3.3
0.5
V/7.96M 10
7.96
42
1.50
280
SW 1608CF-4R7
□
4.7
0.5
V/7.96M 10
7.96
34
2.10
260
SWF1608CF-6R8
□
6.8
0.5
V/7.96M 10
7.96
31
3.10
200
SWF1608CF-100
□
10.0
0.5
V/2.52M 10
2.52
25
4.80
180
□
:
K=
±
10% ,
M=
±
20%
66
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the specifications without prior
notification.
For the latest specification, please visit our website:
(0805
inch)
Dimensions
Specifications
Chip Size
A
2.40
max.
B
1.60
max.
C
1.40
max.
D
0.51
ref.
E
0.44
±0.10
Units: mm
Impedance vs Frequency, DC Bias Characteristics (Typical)
Part Number
Inductance
(
uH)
Test Frequency
(
Hz)
Q
min.
Test Frequency
(
MHz)
SRF
(
MHz) min.
DC
Resistance
(
Ω
)
max.
Rated Current
(
mA) max.
SWF2012CF-R47
□
0.47
0.5
V/7.96M 10
7.96
720
0.20
750
SWF2012CF-R56
□
0.56
0.5
V/7.96M 10
7.96
665
0.21
730
SWF2012CF-R68
□
0.68
0.5
V/7.96M 10
7.96
565
0.28
670
SWF2012CF-1R0
□
1.00
0.5
V/7.96M 10
7.96
525
0.34
615
SWF201 CF-1R2
□
1.20
0.5
V/7.96M 10
7.96
473
0.39
550
SWF2012CF-1R5
□
1.50
0.5
V/7.96M 10
7.96
300
0.45
520
SWF2012CF-2R2
□
2.20
0.5
V/7.96M 10
7.96
215
0.67
420
SWF201 CF-3R3
□
3.30
0.5
V/7.96M 10
.96
95
0.81
385
SWF2012CF-3R9
□
3.90
0.5
V/7.96M 10
7.96
57
0.88
372
SWF2012CF-4R7
□
4.70
0.5
V/7.96M 10
7.96
51
0.99
345
SWF201 CF-5R6
□
5.60
0.5
V/7.96M 10
7.96
44
1.06
3 5
SWF2012CF-6R8
□
6.80
0.5
V/7.96M 10
7.96
39
1.21
315
SWF2012CF-8R2
□
8.20
0.5
V/7.96M 10
7.96
33
1.33
295
SWF2012CF-100
□
10.0
0.5
V/2.52M 10
2.52
30
1.79
260
SWF2012CF-120
□
12.0
0.5
V/2.52M 10
2.52
27
1.98
250
SWF2012CF-150
□
15.0
0.5
V/2.52M 10
2.52
22
2.68
215
SWF2012CF-180
□
18.0
0.5
V/2.52M 10
2.52
20
3.12
195
SWF2012CF-220
□
22.0
0.5
V/2.52M 10
2.52
18
3.48
180
SWF2012CF-270
□
27.0
0.5
V/2.52M 10
2.52
16
3.84
170
SWF2012CF-330
□
33.0
0.5
V/2.52M 10
2.52
15
4.34
145
□
:
K=
±
10% ,
M=
±
20%
67
All the data listed in this catalogue are for reference only, TAI-TECH reserves the
notification.
For the latest specification, please visit our website:
Wirewound Ferrite Chip Inductors
(1008
inch)
Dimensions
Specifications
A
B
C
D
E
Units: mm
Impedance vs Frequency, DC Bias Characteristics (Typical
Part Number
Inductance
(
uH)
Test Frequency
(
Hz)
Q
min.
Test Frequency
(
MHz)
SRF
(
MHz) mi
SWF2520CF-1R0
□
1.00
0.5
V/7.96M 12
7.96
345
SWF2520CF-1R5
□
1.50
0.5
V/7.96M 12
7.96
100
SWF2520CF-2R2
□
2.20
0.5
V/7.96M 12
7.96
78
SWF2520CF-3R3
□
3.30
0.5
V/7.96M 12
7.96
48
SWF2520CF-4R7
□
4.70
0.5
V/7.96M 12
7.96
46
SWF2520CF- R8
□
6.80
0.5
V/7.96M 12
7.96
33
SWF2520CF-8R2
□
8.20
0.5
V/2.52M 12
2.52
30
SWF2520CF-100
□
10.0
0.5
V/2.52M 12
2.52
28
SWF2520CF-150
□
15.0
0.5
V/2.52M 12
2.52
21
SWF2520CF-220
□
22.0
0.5
V/2.52M 12
2.52
18
SWF2520CF-330
□
33.0
0.5
V/2.52M 12
2.52
15
□
:
K=
±
10% ,
M=
±
20%
68
67
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the speci cations without prior noti cation.
For the latest speci cation, please visit our website:
