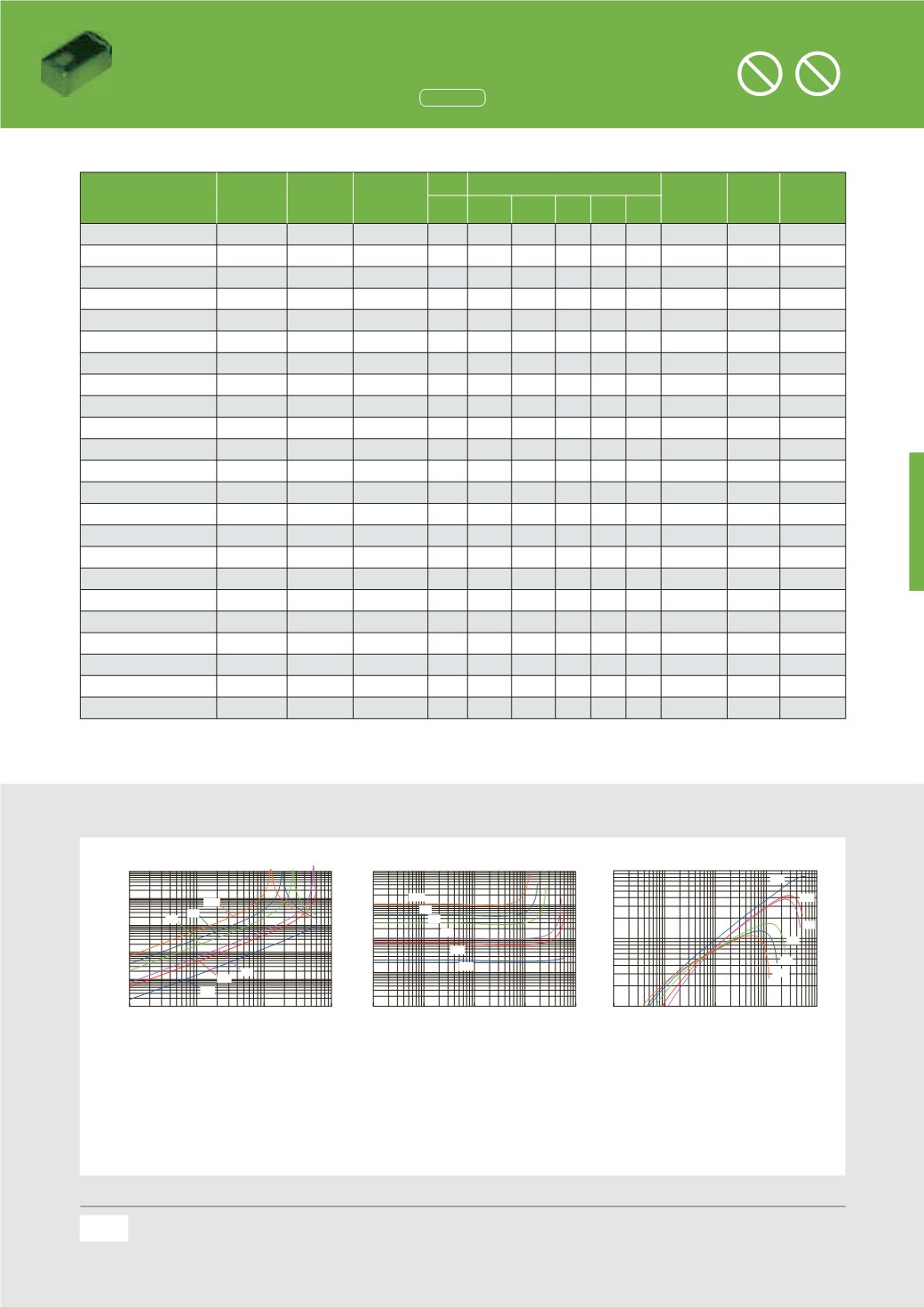

HCI 0603HQ Series
0201
inch
High-Q Multilayer Chip Inductors
Halogen
Halogen-free
Pb
Pb-free
Impedance, Inductance, Q vs Frequency Characteristics (Typical)
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the specifications without prior
notification.
For the latest specification, please visit our website:
75
Specifications
Part Number
Inductance
(
nH)
Tolerance
Test
Frequency
(
MHz)
Q
Q(Typ.) Frequency(Hz)
Rated Current
(
mA) max.
DCR(
Ω
)
max.
SRF(MHz)
min.
min. 500M 800M 1.8G 2.0G 2.4G
HCI0603HQ-3N5
□
-
M8
3.5
B, C, S
500
15 22 29 45 46 50
500
0.20
8000
HCI0603HQ-3N6
□
-
M8
3.6
B, C, S
500
15 22 29 45 46 50
500
0.20
7000
HCI0603HQ-3N7
□
-
M8
3.7
B, C, S
500
15 22 28 43 44 48
500
0.20
7000
HCI0603HQ-3N8
□
-
M8
3.8
B, C, S
500
15 22 28 43 44 47
500
0.20
7000
HCI0603HQ-3N9
□
-
M8
3.9
B, C, S
500
15 22 28 43 43 47
440
0.25
7000
HCI0603HQ-4N3
□
-
M8
4.3
C, S, H, J
500
15 21 29 43 44 47
400
0.30
6000
HCI0603HQ-4N7
□
-
M8
4.7
C, S, H, J
500
15 21 29 42 42 45
370
0.35
6000
HCI0603HQ-5N1
□
-
M8
5.1
C, S, H, J
500
15 21 27 41 41 44
370
0.35
6000
HCI0603HQ-5N6
□
-
M8
5.6
C, S, H, J
500
15 21 28 40 40 43
370
0.35
6000
HCI0603HQ-6N2
□
-
M8
6.2
C, S, H, J
500
15 21 27 40 41 41
340
0.40
6000
HCI0603HQ-6N8
□
-
M8
6.8
H, J
500
15 21 27 39 39 40
310
0.50
6000
HCI0603HQ-7N5
□
-
M8
7.5
H, J
500
14 20 27 37 37 39
300
0.60
5000
HCI0603HQ-8N2
□
-
M8
8.2
H, J
500
14 20 27 37 37 40
250
0.70
5000
HCI0603HQ-9N1
□
-
M8
9.1
H, J
500
14 20 26 36 36 39
250
0.70
4000
HCI0603HQ-10N
□
-
M8
10
H, J
500
14 20 26 35 35 37
220
0.85
4000
HCI0603HQ-12N
□
-
M8
12
H, J
500
14 20 26 32 33 34
220
0.85
3000
HCI0603HQ-15N
□
-
M8
15
H, J
500
14 20 24 30 29 27
200
0.90
3000
HCI0603HQ-18N
□
-
M8
18
H, J
500
14 19 24 28 26 25
180
1.20
2500
HCI0603HQ-22N
□
-
M8
22
H, J
500
14 18 23 26 26 22
160
1.60
2500
HCI0603HQ-27N
□
-
M8
27
J
500
9
13 15 12
-
-
160
1.60
1700
HCI0603HQ-33N
□
-
M8
33
J
300
7
13 14
-
-
-
160
1.60
1500
HCI0603HQ-39N
□
-
M8
39
J
300
7
12 13
-
-
-
140
2.00
1300
HCI0603HQ-47N
□
-
M8
47
J
300
7
12 13
-
-
-
140
2.10
1200
HCI0603HQ-56N
□
-
M8
56
J
300
7
11
12
-
-
-
120
3.00
1000
HCI0603HQ-68N
□
-
M8
68
J
300
7
11
12
-
-
-
120
3.10
1000
HCI0603HQ-82N
□
-
M8
82
J
300
7
11
11
-
-
-
110
3.50
900
HCI0603HQ-R10
□
-
M8 100
J
300
6
10
8
-
-
-
100
4.10
800
□：
B
=±
0.1
nH , C=
±
0.2
nH , S=
±
0.3
nH , H=
±
3% ,
J=
±
5%
●
Rated current: based on temperature rise test
Impedance, Inductance, Q vs Frequency Characteristics (Typical)
10
100
1000
10000
FREQUENCY(MHz)
0.1
1
10
100
1000
10000
IMPEDANCE(Ohm)
HCI0603HQ Z vs Freq.
2.2
n
6.8
n
10
n
27
n
47
n
100
n
1
10
100
1000
10000
FREQUENCY(MHz)
0.1
1
10
100
1000
INDUCTANCE(nH)
HCI0603HQ L vs Freq.
2.2
n
6.8
n
10
n
27
n
47
n
100
n
1
10
100
1000
10000
FREQUENCY(MHz)
1
10
100
Q
HCI0603HQ Q vs Freq.
2.2
n
6.8
n
10
n
27
n
47
n
100
n
Specifications
Part Number
Inductance
(
nH)
Tolerance
Test
Frequency
(
MHz)
Q
Q(Typ.) Frequency(Hz)
Rated
Current
(
mA) max.
DCR(
Ω
)
max.
SRF(MHz)
min.
min. 500M 800M 1.8G 2.0G 2.4G
HCI0603HQ-3N9
□
-
M8
3.9
B, C, S
500
15
22
28 43 43 47
440
0.25
7000
HCI0603HQ-4N3
□
-
M8
4.3
C, S, H, J
500
15
21
29 43 44 47
400
0.30
6000
HCI0603HQ-4N7
□
-
M8
4.7
C, S, H, J
500
15
21
29 42 42 45
370
0.35
6000
HCI0603HQ-5N1
□
-
M8
5.1
C, S, H, J
500
15
21
27 41 41 44
370
0.35
6000
HCI0603HQ-5N6
□
-
M8
5.6
C, S, H, J
500
15
21
28 40 40 43
370
0.35
6000
HCI0603HQ-6N2
□
-
M8
6.2
C, S, H, J
500
15
21
27 40 41 41
340
0.40
6000
HCI0603HQ-6N
□
-
M8
6.8
H, J
500
15
1
27 39 39 40
310
0.50
6000
HCI0603HQ-7N5
□
-
M8
7.5
H, J
500
14
0
2
37 37 39
300
0.60
5000
HCI0603HQ-8N2
□
-
M8
8.2
H, J
500
14
20
27 37 37 40
250
0.70
5000
HCI0603HQ-9N1
□
-
M8
9.1
H, J
500
14
20
26 36 36 39
250
0.70
4000
HCI0603HQ-10N
□
-
M8
10
H, J
500
14
20
26 35 35 37
220
0.85
4000
HCI0603HQ-12N
□
-
M8
12
H, J
500
14
20
26 32 33 34
220
0.85
3000
HCI0603HQ-15N
□
-
M8
15
H, J
500
14
20
24 30 29 27
200
0.90
3000
HCI0603HQ-18N
□
-
M8
18
H, J
500
14
19
24 28 26 25
180
1.20
2500
HCI0603HQ-22N
□
-
M8
22
H, J
500
14
18
23 26 26 22
160
1.60
2500
HCI0603HQ-27N
□
-
M8
27
J
500
9
1
15 1
-
-
16
1.60
1700
HCI0603HQ-33N
□
-
M8
33
J
300
7
3
4
-
-
-
160
1.60
1500
HCI0603HQ-39N
□
-
M8
39
J
300
7
12
13
-
-
-
140
2.00
1300
HCI0603HQ-47N
□
-
M8
47
J
300
7
12
13
-
-
-
140
2.10
1200
HCI0603HQ-56N
□
-
M8
56
J
300
7
11
12
-
-
-
120
3.00
1000
HCI0603HQ-68N
□
-
M8
68
J
300
7
11
12
-
-
-
120
3.10
1000
HCI0603HQ-82N
□
-
M8
82
J
300
7
11
11
-
-
-
110
3.50
900
HCI0603HQ-R10
□
-
M8
100
J
300
6
10
8
-
-
-
100
4.10
800
□：
B=
±
0.1
nH , C=
±
0.2
nH , S=
±
0.3
nH , H=
±
3% ,
J=
±
5%
●
Rated current: based on temperature rise test
75
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the speci cations without prior noti cation.
For the latest speci cation, please visit our website:
Remark
