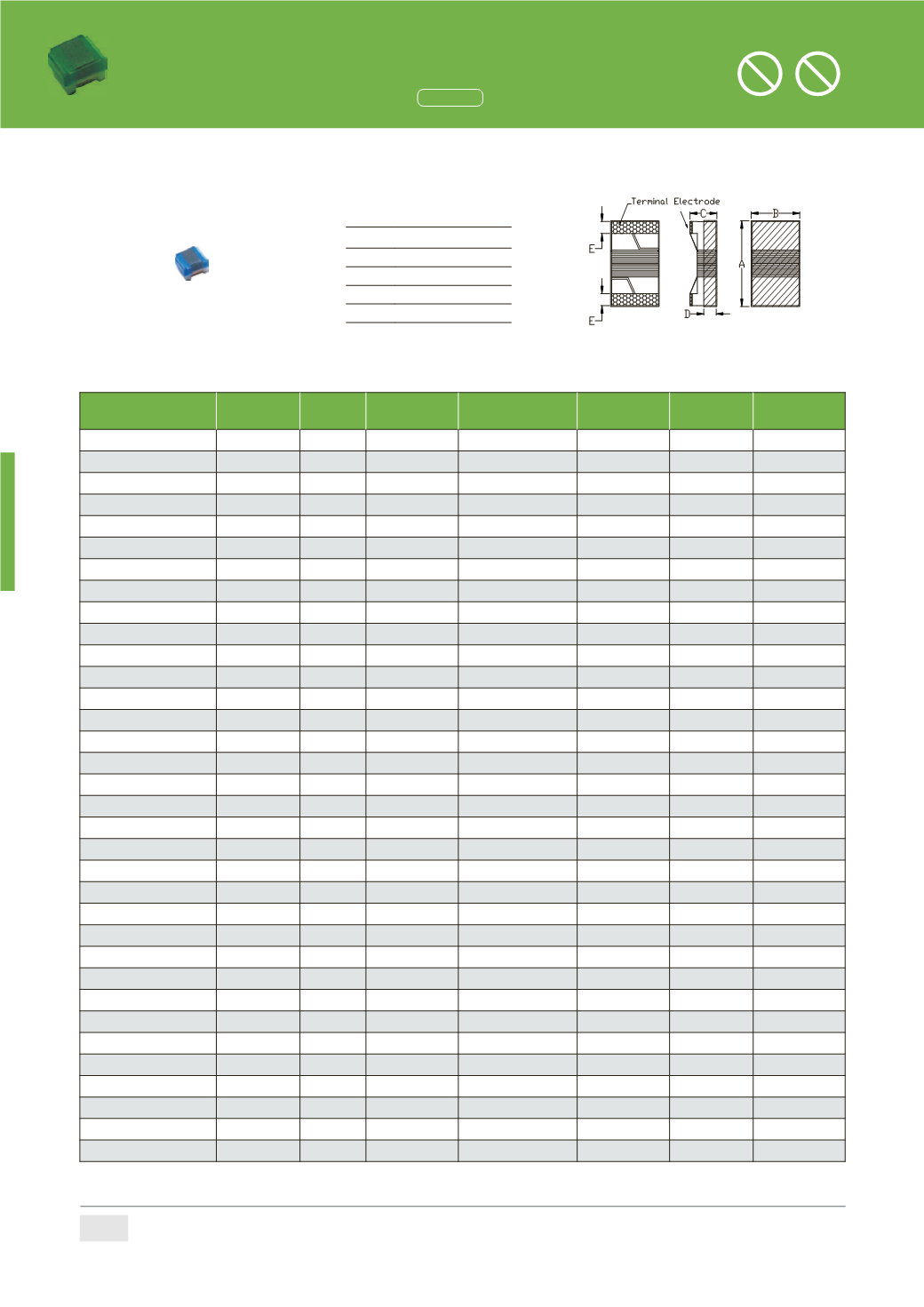

西北臺慶2014-2015總型錄 - page 80

SWI 0805UF Series 0805 inch
Dimensions
Specifications
Chip Size Units: mm
A 2.29 max.
B 1.73 max.
C 1.52 max.
D 0.51 ref.
E 0.44±0.10
Part Number Inductance
( nH) Tolerance Test Frequency( Hz)
Q @Test
Freq min.
I rms (mA)
max. DCR (Ω) max. SRF (MHz) min.
SWI0805UF-2N8 □ 2.8 C,S 0.1V/250M 80/1500 800 0.06 7900
SWI0805UF-3N0 □ 3.0 C,S 0.1V/250M 65/1500 800 0.06 7900
SWI0805UF-3N3 □ 3.3 C,S 0.1V/250M 50/1500 600 0.08 7900
SWI0805UF-5N6 □ 5.6 C,S 0.1V/250M 65/1000 600 0.08 5500
SWI0805UF-6N8 □ 6.8 C,J 0.1V/250M 50/1000 600 0.11 5500
SWI0805UF-7N5 □ 7.5 C,J 0.1V/250M 50/1000 600 0.14 4500
SWI0805UF-8N2 □ 8.2 C,J 0.1V/250M 50/1000 600 0.12 4700
SWI0805UF-10N □ 10 G,J 0.1V/250M 60/500 600 0.10 4200
SWI0805UF-12N □ 12 G,J 0.1V/250M 50/500 600 0.15 4000
SWI0805UF-15N □ 15 G,J 0.1V/250M 50/500 600 0.17 3400
SWI0805UF-18N □ 18 G,J 0.1V/250M 50/500 600 0.20 3300
SWI0805UF-22N □ 22 G,J 0.1V/250M 55/500 500 0.22 2600
SWI0805UF-24N □ 24 G,J 0.1V/250M 50/500 500 0.22 2000
SWI0805UF-27N □ 27 G,J 0.1V/250M 55/500 500 0.25 2500
SWI0805UF-33N □ 33 G,J 0.1V/250M 60/500 500 0.27 2050
SWI0805UF-36N □ 36 G,J 0.1V/250M 55/500 500 0.27 1700
SWI0805UF-39N □ 39 G,J 0.1V/250M 60/500 500 0.29 2000
SWI0805UF-43N □ 43 G,J 0.1V/200M 60/500 500 0.34 1650
SWI0805UF-47N □ 47 G,J 0.1V/200M 60/500 500 0.31 1650
SWI0805UF-56N □ 56 G,J 0.1V/200M 60/500 500 0.34 1550
SWI0805UF-68N □ 68 G,J 0.1V/200M 60/500 500 0.38 1450
SWI0805UF-82N □ 82 G,J 0.1V/150M 65/500 400 0.42 1300
SWI0805UF-91N □ 91 G,J 0.1V/150M 65/500 400 0.48 1200
SWI0805UF-R10 □ 100 G,J 0.1V/150M 65/500 400 0.46 1200
SWI0805UF-R11 □ 110 G,J 0.1V/150M 50/250 400 0.48 1000
SWI0805UF-R12 □ 120 G,J 0.1V/150M 50/250 400 0.51 1100
SWI0805UF-R15 □ 150 G,J 0.1V/100M 50/250 400 0.56 920
SWI0805UF-R18 □ 180 G,J 0.1V/100M 50/250 400 0.64 870
SWI0805UF-R20 □ 200 G,J 0.1V/100M 50/250 400 0.68 860
SWI0805UF-R22 □ 220 G,J 0.1V/100M 50/250 400 0.70 850
SWI0805UF-R24 □ 240 G,J 0.1V/100M 44/250 350 1.00 690
SWI0805UF-R25 □ 250 G,J 0.1V/100M 45/250 350 1.20 660
SWI0805UF-R27 □ 270 G,J 0.1V/100M 48/250 350 1.00 650
SWI0805UF-R33 □ 330 G,J 0.1V/100M 48/250 310 1.40 600
High Frequency Wirewound Chip Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogueare for reference only,TAI-TECH reserves the right toalter or revise the specificationswithout prior
notification.
For the latest specification,please visit our website:www.tai-tech.com.tw
High Frequency Wirewound Chip Inductors
(0402 inch)
 Dimensions
 Specifications
Chip Size
A 1.09±0.10
B 0.60±0.10
C 0.56±0.10
D 0.20±0.15
E 0.23±0.10
Units: mm
Part Number Inductance
(nH) Tolerance Qmin.
Test Frequency
(Hz)
I rms
(mA) max.
DCR
(Ω) max.
SRF
(GHz) min.
SWI0402F-1N0□ 1.0 S.J 16 0.1V/250M 1360 0.045 12.7
SWI0402F-1N9□ 1.9 S.J 16 0.1V/250M 1040 0.070 11.30
SWI0402F-2N0□ 2.0 S.J 16 0.1V/250M 1040 0.070 11.10
SWI0402F-2N2□ 2.2 S.J 19 0.1V/250M 960 0.070 10.80
SWI0402F-2N4□ 2.4 S.J 15 0.1V/250M 790 0.068 10.50
SWI0402F-2N7□ 2.7 S.J 16 0.1V/250M 640 0.120 10.40
SWI0402F-3N3□ 3.3 S.J 19 0.1V/250M 840 0.066 7.00
SWI0402F-3N6□ 3.6 S.J 19 0.1V/250M 840 0.066 6.80
SWI0402F-3N9□ 3.9 S.J 19 0.1V/250M 840 0.066 6.00
SWI0402F-4N3□ 4.3 S.J 18 0.1V/250M 700 0.091 6.00
SWI0402F-4N7□ 4.7 S.J 15 0.1V/250M 640 0.130 4.77
SWI0402F-5N1□ 5.1 S.J 20 0.1V/250M 800 0.083 4.80
SWI0402F-5N6□ 5.6 S.J 20 0.1V/250M 760 0.083 4.80
SWI0402F-6N2□ 6.2 S.J 20 0.1V/250M 760 0.083 4.80
SWI0402F-6N8□ 6.8 S.J 20 0.1V/250M 680 0.083 4.80
SWI0402F-7N5□ 7.5 S.J 22 0.1V/250M 680 0.100 4.80
SWI0402F-8N2□ 8.2 S.J 22 0.1V/250M 680 0.100 4.40
SWI0402F-8N7□ 8.7 S.J 18 0.1V/250M 480 0.200 4.10
SWI0402F-9N0□ 9.0 S.J 22 0.1V/250M 680 0.100 4.16
SWI0402F-9N5□ 9.5 S.J 18 0.1V/250M 480 0.200 4.00
SWI0402F-10N□ 10 J,K 21 0.1V/250M 480 0.200 3.90
SWI0402F-11N□ 11 J,K 24 0.1V/250M 640 0.120 3.68
SWI0402F-12N□ 12 J,K 24 0.1V/250M 640 0.120 3.60
SWI0402F-13N□ 13 J,K 24 0.1V/250M 440 0.210 3.45
SWI0402F-15N□ 15 J,K 24 0.1V/250M 560 0.170 3.28
SWI0402F-16N□ 16 J,K 24 0.1V/250M 560 0.220 3.10
SWI0402F-18N□ 18 J,K 25 0.1V/250M 420 0.230 3.10
SWI0402F-19N□ 19 J,K 24 0.1V/250M 480 0.200 3.04
SWI0402F-20N□ 20 J,K 25 0.1V/250M 420 0.25 3.00
SWI0402F-22N□ 22 J,K 25 0.1V/250M 400 0.30 2.80
SWI0402F-23N□ 23 J,K 22 0.1V/250M 400 0.30 2.72
SWI0402F-24N□ 24 J,K 25 0.1V/250M 400 0.30 2.70
SWI0402F-27N□ 27 J,K 24 0.1V/250M 400 0.30 2.48
76
All the data listed in this catalogue are for reference only, TAI-TECH reserves t
notification.
For the latest specification, please visit our website:www.tai-tech.com.tw
High Frequency Wirewound Chip Inductors
(0402 inch)
 Dimensions
 Specifications
A
B
C
D
E
Units: mm
Part Number Inductance
(nH) Tolerance Qmin.
Test Frequency
( Hz)
I rm
( mA)
SWI0402F-1N0□ 1.0 S.J 16 0.1V/250M 136
SWI0402F-1N9□ 1.9 S.J 16 0.1V/250M 104
SWI0402F-2N0□ 2.0 S.J 16 .1V/250M 104
SWI0402F-2N2□ 2.2 S.J 19 .1V/250M 960
SWI0402F-2N4□ 2.4 S.J 15 .1V/250M 790
SWI0402F-2N7□ 2.7 S.J 16 .1V/250M 640
SWI0402F-3N3□ 3.3 S.J 19 .1V/250M 840
SWI0402F-3N6□ 3.6 S.J 19 .1V/250M 840
SWI0402F-3N9□ 3.9 S.J 19 .1V/250M 840
SWI04 2F-4N3□ 4.3 S.J 18 .1V/250M 700
SWI0402F-4N7□ 4.7 S.J 15 .1V/250M 640
SWI0402F-5N1□ 5.1 S.J 20 .1V/250M 800
SWI0402F-5N6□ 5.6 S.J 20 0.1V/250M 760
SWI0402F-6N2□ 6.2 S.J 20 0.1V/250M 760
SWI0402F-6N8□ 6.8 S.J 20 0.1V/250M 680
SWI0402F-7N5□ 7.5 S.J 22 0.1V/250M 680
SWI0402F-8N2□ 8.2 S.J 22 0.1V/250M 680
SWI0402F-8N7□ 8.7 S.J 18 0.1V/250M 480
SWI0402F-9N0□ 9.0 S.J 22 0.1V/250M 680
SWI0402F-9N5□ 9.5 S.J 18 0.1V/250M 480
SWI0402F-10N□ 10 J,K 21 0.1V/250M 480
SWI0402F-11N□ 11 J,K 24 0.1V/250M 640
SWI0402F-12N□ 12 J,K 24 0.1V/250M 640
SWI0402F-13N□ 13 J,K 24 0.1V/250M 440
SWI0402F-15N□ 15 J,K 24 0.1V/250M 560
SWI0402F-16N□ 16 J,K 24 0.1V/250M 560
SWI0402F-18N□ 18 J,K 25 0.1V/250M 420
SWI0402F-19N□ 19 J,K 24 0.1V/250M 480
SWI0402F-20N□ 20 J,K 25 0.1V/250M 420
SWI0402F-22N□ 22 J,K 25 0.1V/250M 400
SWI0402F-23N□ 23 J,K 22 0.1V/250M 400
SWI0402F-24N□ 24 J,K 25 0.1V/250M 400
SWI0402F-27N□ 27 J,K 24 0.1V/250M 400
76
80
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the speci cations without prior noti cation.
For the latest speci cation, please visit our website:www.tai-tech.com.tw Remark
