Ferrite Chip Bead Array
(1206
inch)

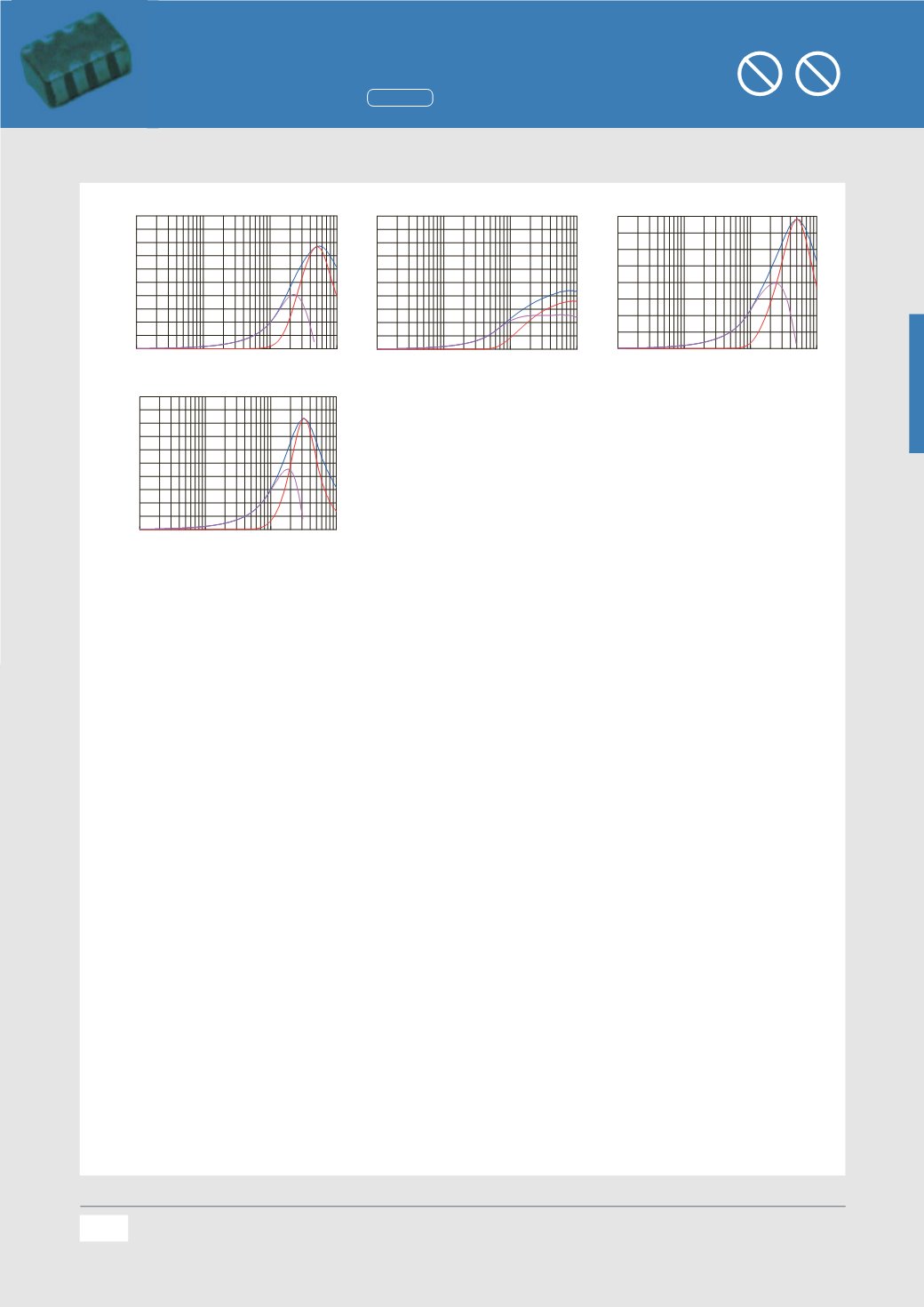

Impedance-Frequency Characteristics (Typical)
1
10
100
1000
FREQUENCY(MHz)
0
30
60
90
120
150
IMPEDANCE(Ohm)
FCA3216MF4-300T04
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
60
120
180
240
300
IMPEDANCE(Ohm)
FCA3216MF4-600T03
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
100
200
300
400
IMPEDANCE(Ohm)
FCA3216MF4-121T02
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
200
400
600
800
1000
IMPEDANCE(Ohm)
FCA3216MF4-301T02
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
400
800
1200
1600
2000
IMPEDANCE(Ohm)
FCA3216MF4-601T01
Z
R
X
Impedance-Frequency Characteristics (Typical)
FCA 3216 Series
1206
inch
Ferrite Chip Bead Array
