High Current Ferrite Chip Beads
(1206
inch)

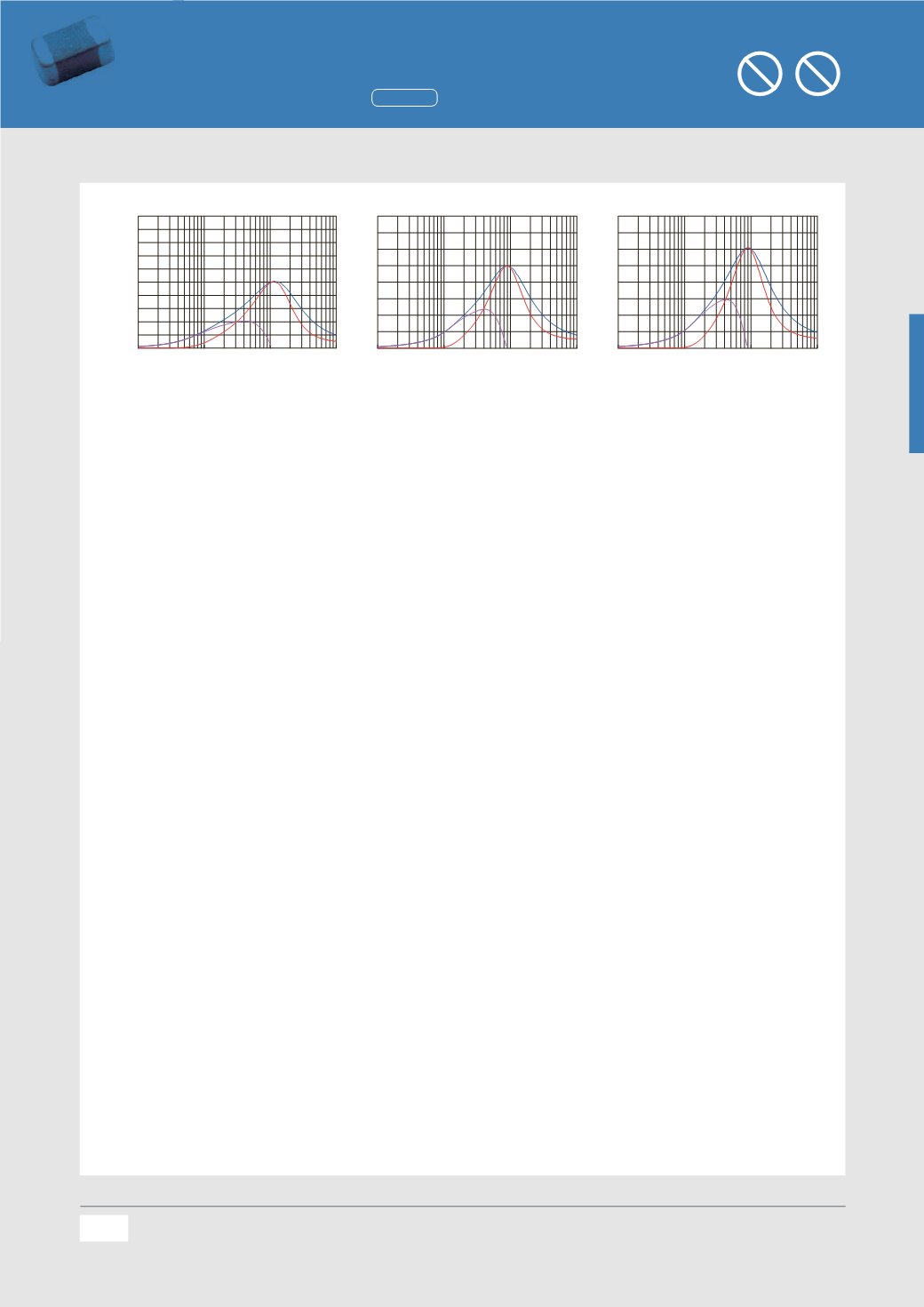

Impedance-Frequency Characteristics (Typical)
1
10
100
1000
FREQUENCY(MHz)
0
200
400
600
800
1000
IMPEDANCE(Ohm)
HCB3216KF-471T10
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
200
400
600
800
IMPEDANCE(Ohm)
HCB3216KF-501T30
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
200
400
600
800
IMPEDANCE(Ohm)
HCB3216KF-601T20
Z
R
X
Impedance-Frequency Characteristics (Typical)
HCB 3216 Series
1206
inch
High Current Ferrite Chip Beads
Halogen
Halogen-free
