High Current Ferrite Chip Beads
(0402
inch)

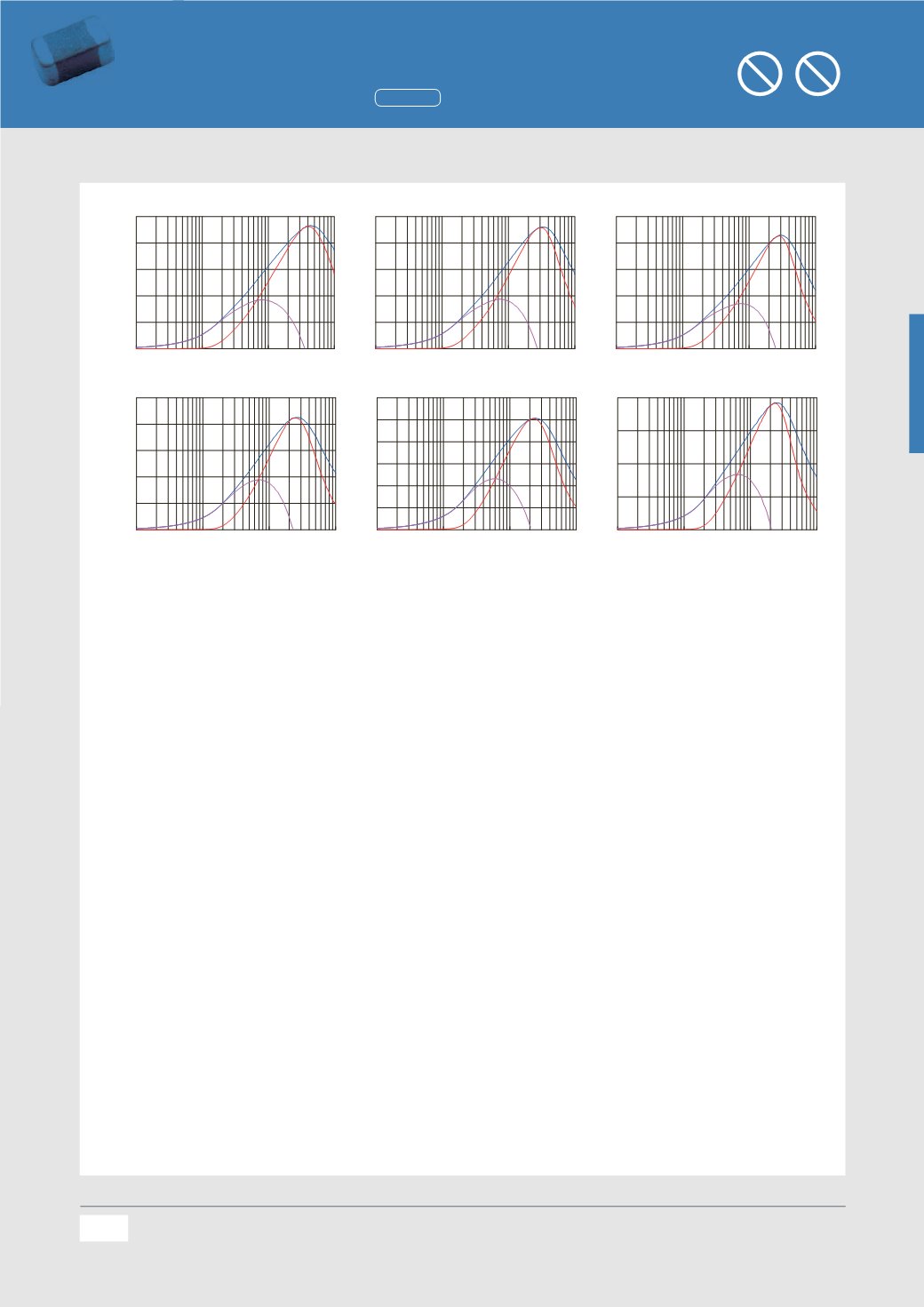

Impedance-Frequency Characteristics (Typical)
1
10
100
1000
FREQUENCY(MHz)
0
40
80
120
160
200
IMPEDANCE(Ohm)
HCB1005PF-121T20
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
60
120
180
240
300
IMPEDANCE(Ohm)
HCB1005PF-181T15
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
70
140
210
280
350
IMPEDANCE(Ohm)
HCB1005PF-221T14
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
100
200
300
400
500
IMPEDANCE(Ohm)
HCB1005PF-331T12
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
200
400
600
IMPEDANCE(Ohm)
HCB1005PF-471T10
Z
R
X
1
10
100
1000
FREQUENCY(MHz)
0
200
400
600
800
IMPEDANCE(Ohm)
HCB1005PF-601T09
Z
R
X
Impedance-Frequency Characteristics (Typical)
HCB 1005 Series
0402
inch
High Cur e t rrite Chip Beads
