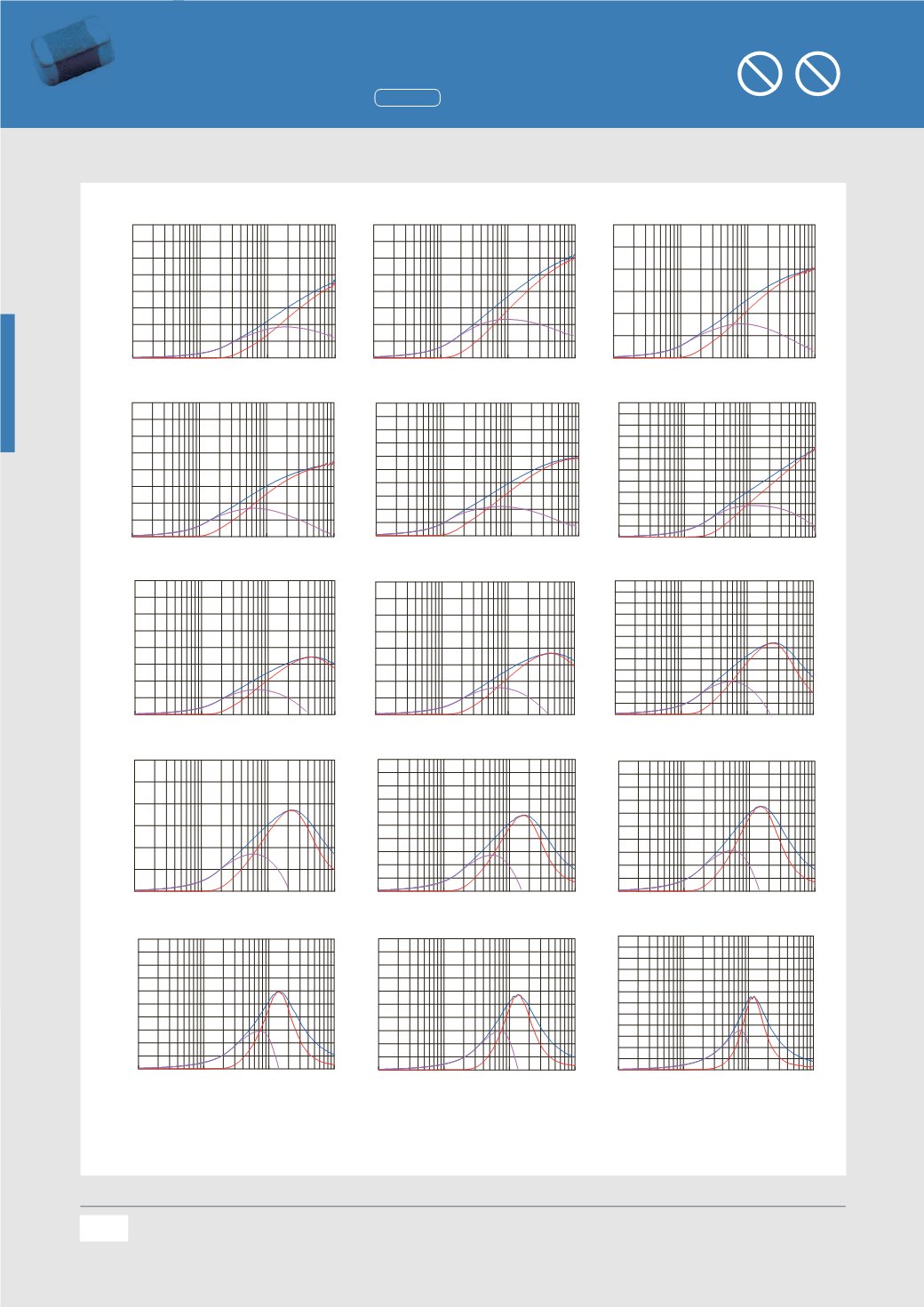

Impedance-Frequency Characteristics (Typical)
1 10 100 1000
FREQUENCY(MHz)
0
10
20
30
40
IMPEDANCE(Ohm)
FCM2012KF-110T09
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
10
20
30
40
IMPEDANCE(Ohm)
FCM2012KF-170T06
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
20
40
60
IMPEDANCE(Ohm)
FCM2012KF-260T06
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
20
40
60
80
IMPEDANCE(Ohm)
FCM2012KF-300T06
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
20
40
60
80
100
IMPEDANCE(Ohm)
FCM2012KF-400T06
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
30
60
90
120
150
180
IMPEDANCE(Ohm)
FCM2012KF-600T09
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
100
200
300
400
IMPEDANCE(Ohm)
FCM2012KF-121T08
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
100
200
300
400
IMPEDANCE(Ohm)
FCM2012KF-151T08
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
100
200
300
400
500
600
IMPEDANCE(Ohm)
FCM2012KF-221T07
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
200
400
600
IMPEDANCE(Ohm)
FCM2012KF-301T07
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
200
400
600
800
1000
IMPEDANCE(Ohm)
FCM2012KF-471T07
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
200
400
600
800
1000
IMPEDANCE(Ohm)
FCM2012KF-601T05
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
400
800
1200
1600
2000
IMPEDANCE(Ohm)
FCM2012KF-102T04
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
400
800
1200
1600
2000
IMPEDANCE(Ohm)
FCM2012HF-102T04
Z
R X
1 10 100 1000
FREQUENCY(MHz)
0
500
1000
1500
2000
2500
3000
IMPEDANCE(Ohm)
FCM2012HF-152T03
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
500
1000
1500
2000
2500
3000
IMPEDANCE(Ohm)
FCM2012HF-202T02
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
10
20
30
40
IMPEDANCE(Ohm)
FCM2012NF-070T06
Z
R
X
1 10 100 1000
FREQUENCY(MHz)
0
30
60
90
120
IMPEDANCE(Ohm)
FCM2012CF-300T07
Z
R
X
Ferrite Chip Beads
(0805 inch)
FCM 2012 Series 0805 inch
Ferrite Chip Beads
