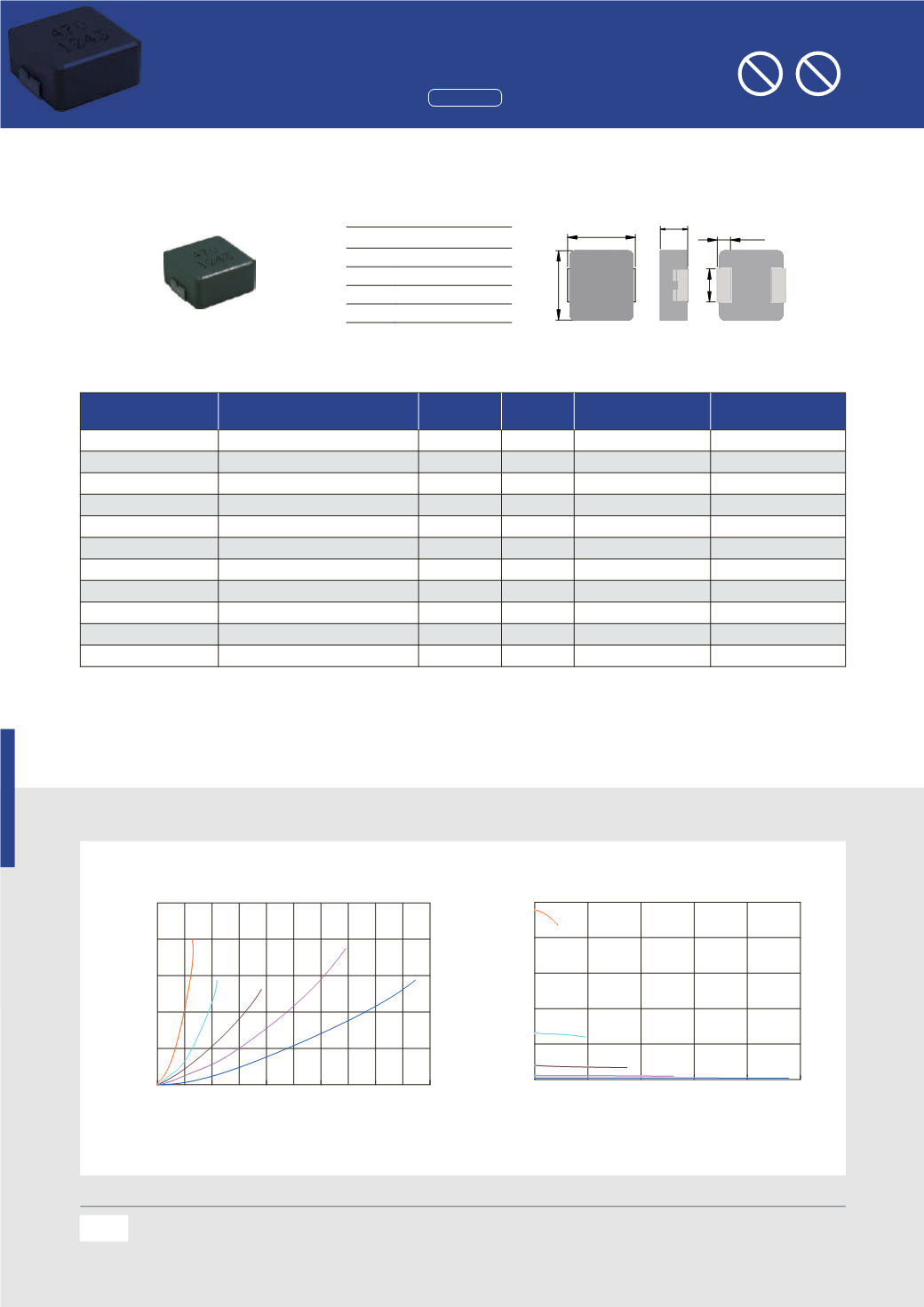

DC Bias Characteristics (Typical)
Dimensions
Specifications
Chip Size
Units: mm
A
13.50
±0.50
B
12.50
±0.30
C
4.80
±0.20
D
2.30
±0.30
E
4.70
±0.30
Part Number
Inductance L0 (uH)
±
20%
@ 0
A
I rms (A)
typ
I sat (A)
typ
DCR (m
Ω
)
typ. @25
℃
.
DCR (m
Ω
)
max. @25
℃
.
TMPC1205HP-R20MG-D
0.20
52.0
110.0
0.45
0.55
TMPC1205HP-R47MG-D
0.47
38.0
65.0
0.86
1.10
TMPC1205HP-R68MG-D
0.68
34.0
54.0
1.40
1.70
TMPC1205HP-1R0MG-D
1.00
29.0
50.0
1.85
2.50
TMPC1205HP-2R2MG-D
2.20
20.0
32.0
4.20
5.50
TMPC1205HP-3R3MG-D
3.30
15.0
32.0
6.80
9.20
TMPC1205HP-4R7MG-D
4.70
12.0
27.0
11.40
15.00
TMPC1205HP-6R8MG-D
6.80
11.0
21.0
14.50
18.50
TMPC1205HP-8R2MG-D
8.20
9.5
18.0
16.80
22.50
TMPC1205HP-100MG-D
10.0
9.0
16.0
21.40
25.50
TMPC1205HP-220MG-D
22.0
6.5
10.0
50.00
58.00
Note:
1.
Test frequency : L : 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil temperature rise approximately
Δ
t of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical. (keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the specifications withou
notification.
For the latest specification, please visit our website:
Dimensions
Specifications
Chip Size
A
13.50
±
0.50
B
12.50
±
0.30
C
4.80
±
0.20
D
2.30
±
0.30
E
4.70
±
0.30
Units: mm
Part Number
Inductance L0
(
uH)
±20%
@ 0
A
I rms
(
A)typ
I sat
(
A)typ
DCR (mΩ)
typ. @25
℃
.
DCR (mΩ)
max. @25
℃
.
TMPC1205HP-R20MG-D
0.20
52.0
110.0
0.45
0.55
TMPC1205HP-R47MG-D
0.47
38.0
65.0
0.86
1.10
TMPC1205HP-R68MG-D
0.68
34.0
54.0
1.40
1.70
TMPC1205HP-1R0MG-D
1.00
29.0
50.0
1.85
2.50
TMPC1205HP-2R2MG-D
2.20
20.0
32.0
4.20
5.50
TMPC1205HP-3R3MG-D
3.30
15.0
32.0
6.80
9.20
TMPC1205HP-4R7MG-D
4.70
12.0
27.0
11.40
15.00
TMPC1205HP-6R8MG-D
6.80
11.0
21.0
14.50
18.50
TMPC1205HP-8R2MG-D
8.20
9.5
18.0
16.80
22.50
TMPC1205HP-100MG-D
10.0
9.0
16.0
21.40
25.50
TMPC1205HP-220MG-D
22.0
6.5
10.0
50.00
58.00
Note:
1.
Test frequency : L : 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil te perature rise approximately Δt of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical.
(
keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
DC Bias Characteristics (Typical)
A
B
C
1
R0
E
D
1151
174
0
11
22
33
44
55
DC CURRENT(A)
0
8
16
24
32
40
TEMP. RISE(
o
C)
TMPC1205HP-Series
R20
R50
1
R8
220
6
R0
0
23
46
69
92
115
DC CURRENT(A)
0
4.6
9.2
13.8
18.4
23
INDUCTANCE(uH)
TMPC1205HP-Series
R20
R47
1
R8
6
R0
220
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revi
notification.
For the latest specification, please visit our website:
Molding Type High Current Power Inductors
(5050
inch)
Dimensions
Specifications
Chip Siz
A
13.5
B
12.5
C
4.8
D
2.3
E
4.7
Units: mm
Part Number
Inductance L0
(
uH)
±20%
@ 0
A
I rms
(
A)typ
I sat
(
A)typ
DCR (mΩ)
typ. @25
℃
.
TMPC1205HP-R20MG-D
0.20
52.0
110.0
0.45
TMPC1205HP-R47MG-D
0.47
38.0
65.0
0.86
TMPC1205HP-R68MG-D
0.68
34.0
54.0
1.40
TMPC1205HP-1R0MG-D
1.00
29.0
50.0
1.85
TMPC1205HP-2R2MG-D
2.20
20.0
32.0
4.20
TMPC1205HP-3R3MG-D
3.30
15.0
32.0
6.80
TMPC1205HP-4R7MG-D
4.70
12.0
27.0
11.40
TMPC1205HP-6R8MG-D
6.80
11.0
21.0
14.50
TMPC120 HP-8R2MG-D
8.20
9.5
18.0
16.80
TMPC1205HP-100MG-D
10.0
9.0
16.0
21.40
TMPC1205HP-220MG-D
22.0
6.5
10.0
50.00
Note:
1.
Test frequency : L : 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical.
(
keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
DC Bias Characteristics (Typical)
A
B
C
1
R0
E
D
1151
174
0
11
22
33
44
55
DC CURRENT(A)
0
8
16
24
32
40
TEMP. RISE(
o
C)
TMPC1205HP-Series
R20
R50
1
R8
220
6
R0
0
23
46
69
92
DC CURRENT(A)
0
4.6
9.2
13.8
18.4
23
INDUCTANCE(uH)
TMPC1205HP-Series
R20
R47
1
R8
6
R0
220
TMPC 1205H Series
5050
inch
Molding Type High Current Power Inductors
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the specifications without prior
notification.
For the latest specification, please visit our website:
Molding Type High rrent Power Inductors
(5050
inch)
Dimensions
Specifications
Chip Size
A
13.50
±
0.50
B
12.50
±
0.30
C
4.80
±
0.20
D
2.30
±
0.30
E
4.70
±
0.30
Units: mm
Part Number
Inductance L0
(
uH)
±20%
@ 0
A
I rms
(
A)typ
I sat
(
A)typ
DCR (mΩ)
typ. @25
℃
.
DCR (mΩ)
max. @25
℃
.
TMPC1205HP-R20MG-D
0.20
52.0
110.0
0.45
0.55
TMPC1205HP-R47MG-D
0.47
38.0
65.0
0.86
1.10
TMPC1205HP-R68MG-D
0.68
34.0
54.0
1.40
1.70
TMPC1205HP-1R0MG-D
1.00
29.0
50.0
1.85
2.50
TMPC1205HP-2R2
2.20
20.0
32.0
4.20
5.50
TMPC1205HP-3R3MG-D
3.30
15.0
32.0
6.80
9.20
TMPC1205HP-4R7MG-D
4.70
12.0
27.0
11.40
15.00
TMPC1205HP-6R8MG-D
6.80
11.0
21.0
14.50
18.50
TMPC1205HP-8R2MG-D
8.20
9.5
18.0
16.80
22.50
TMPC1205HP-100MG-D
10.0
9.0
16.0
21.40
25.50
TMPC1205HP-220MG-D
22.0
6.5
10.0
50.00
58.00
Note:
1.
Test frequency : L : 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical.
(
keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
DC Bias Characteristics (Typical)
A
B
C
1
R0
E
D
1151
174
0
11
22
33
44
55
DC CURRENT(A)
0
8
16
24
32
40
TEMP. RISE(
o
C)
TMPC1205HP-Series
R20
R50
1
R8
220
6
R0
0
23
46
69
92
115
DC CURRENT(A)
0
4.6
9.2
13.8
18.4
23
INDUCTANCE(uH)
TMPC1205HP-Series
R20
R47
1
R8
6
R0
220
174
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or r
without prior noti cation.
For the latest speci cation, please visit our website:
