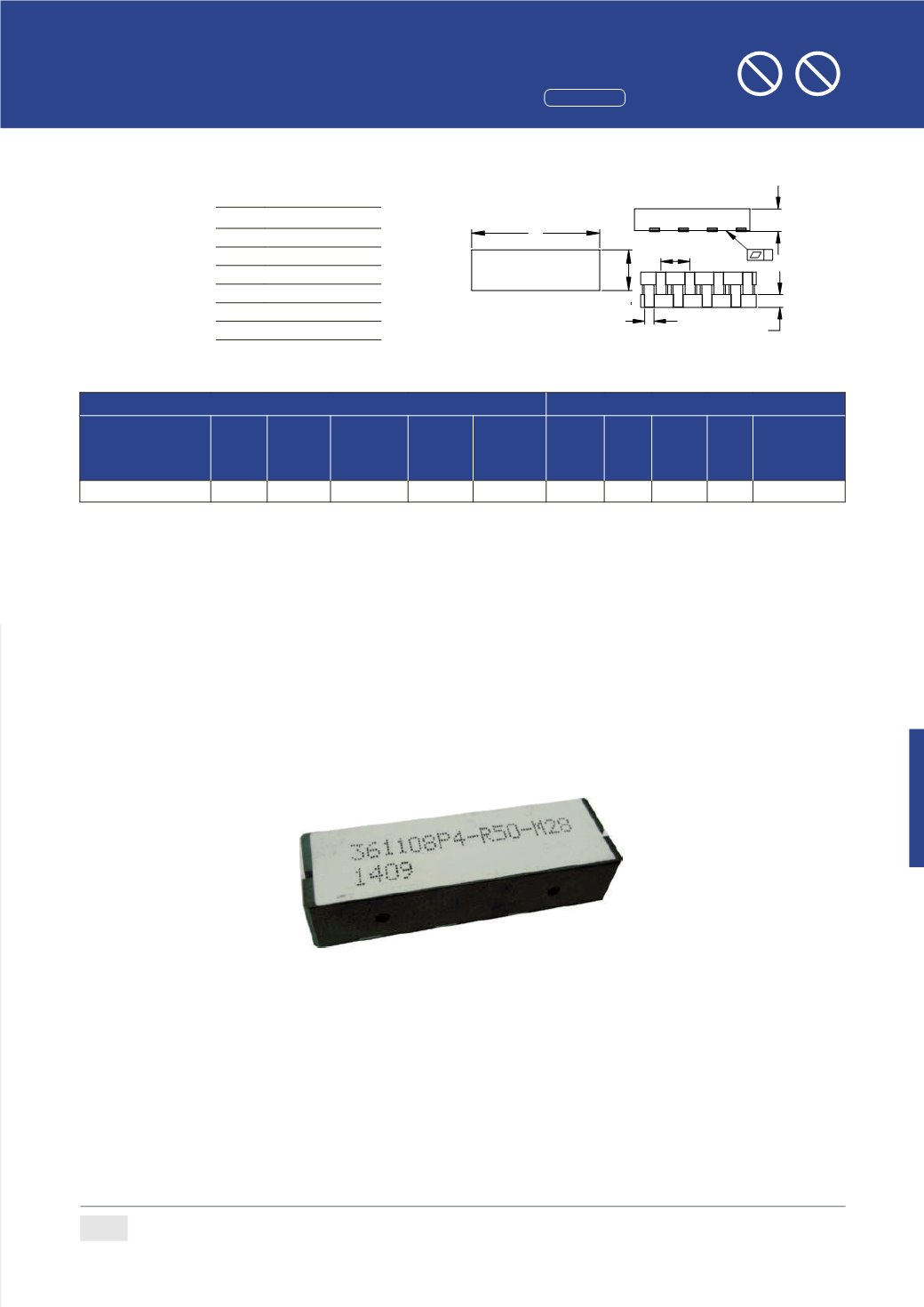

SLPI361108P4-Series-M28
14444
inch
Dimensions
Specifications
Chip Size
Units: mm
A
36.0
±0.50
B
11.0
±0.50
C
7.80
±0.20
D
4.20
±0.15
E
2.90
±0.15
G
9.00
±0.25
T
≤ 0.20
Functional
Test
Part Number
Inductor
Phases
DCR
(
m
Ω
)
±
10%
@25
℃
Rated
Inductance
Per Phase
±
20% (
uh)
I Rated
per Phase
(
Adc)
I max
Peak per
Phase(Adc)
Pin
Number
OCL
(
uH)
±
20%
Pin
Number
OCL
(
uH)
±
20%
Magnetized
Inductance
(
uH)@ 10Adc
(25
°
C)
SLPI361108P4-R40M-M28
4
0.28
0.05
50
80
(3-4), (5-6)
0.40 (1-2), (7-8)
0.38
0.30
Note:
1.
Operating temperature -40
℃
~ +125
℃
2.
All test data is referenced to 25
℃
ambient.
3.
Irms (A) current will cause coil temperature rise approximately
Δ
T=40
℃
without core loss (Keep 1min.).
4.
Isat (A) current will cause L0 to drop approximately 20% (Keep quickly).
5.
The part temperature (ambient + temp rise) should not exceed 125
℃
under worst case operating conditions.
Assembly Type High Current Power Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the specifications without prior
notification.
For the latest specifi
website:
(14444
inch)
Dimensions
Specifications
Chip Size
A
36.0
±
0.50
B
11.0
±
0.50
C
7.80
±
0.20
D
4.20
±
0.15
E
2.90
±
0.15
G
9.00
±
0.25
T
≤
0.20
Units: mm
T
C
1
2
3
4
5
6
7
8
G
E
D
A
B
361108
P4-R40-M28
1330
Functional
Test
Part Number
Inductor
Phases
DCR
(
m
Ω
)
±
10%
@25
℃
Rated
Inductance
Per Phase
±
20%
(
uh)
I Rated
per
Phase
(
Adc)
I max
Peak per
Phase(Adc)
Pin
Number
OCL
(
uH)
±
20%
Pin
Number
OCL
(
uH)
±
20%
Magnetized
Inductance
(
uH)@ 10Adc
(25
°C)
SLPI361108P4-R40M-M28
4
0.28
0.05
50
80
(3-4),
(5-6)
0.40
(1-2),
(7-8)
0.38
0.30
Note:
1.
Testing
frequency
:1
MHz/0.1v.
2.
Testing Instrument: L: HP4284A, CH3302, CH1320, CH-1320S LCR METER /Dcr: HIOKI3540/CH502B.
3.
Operating temperature -40
℃
~ +125
℃
4.
All test data is referenced to 25
℃
ambient.
5.
The rated current,Imax peak current,and rated inductance per phase is determined by Volterra’s
testing and circuit design, Additional inrormation can be provided by contacting Volterra.
1
149
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the
notification.
For the latest specification, please visit our website:
Assembly Type High Current Power Inductors
(14444
inch)
Dimensions
Specifications
Chip Size
A
36.0
±
0.5
B
11.0
±
0.5
C
7.80
±
0.2
D
4.20
±
0.1
E
2.90
±
0.1
G
9.00
±
0.2
T
≤
0.20
Units: mm
T
C
1
2
3
4
5
6
7
8
G
E
D
A
B
361108
P4-R40-M28
1330
Functional
Te
Part Number
Inductor
Phases
DCR
(
m
Ω
)
±
10%
@25
℃
Rated
Inductance
Per Phase
±
20%
(
uh)
I Rated
per
Phase
(
Adc)
I max
Peak per
Phase(Adc)
Pin
Number
OCL
(
uH)
±
20%
Pin
Number
SLPI361108P4-R40M-M28
4
0.28
0.05
50
80
(3-4),
(5-6)
0.40
(1-2),
(7-8)
Note:
1.
Testing
frequency
:1
MHz/0.1v.
2.
Testing Instrument: L: HP4284A, CH3302, CH1320, CH-1320S LCR METER /Dcr: HIOKI3540/CH502B.
3.
Operating temperature -40
℃
~ +125
℃
4.
All test data is referenced to 25
℃
ambient.
5.
The rated current,Imax peak current,and rated inductance per phase is determined by Volterra’s
testing and circuit design, Additional inrormation can be provided by contacting Volterra.
1
149
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the speci cations without prior noti cation.
For the latest speci cation, please visit our website:
Remark
