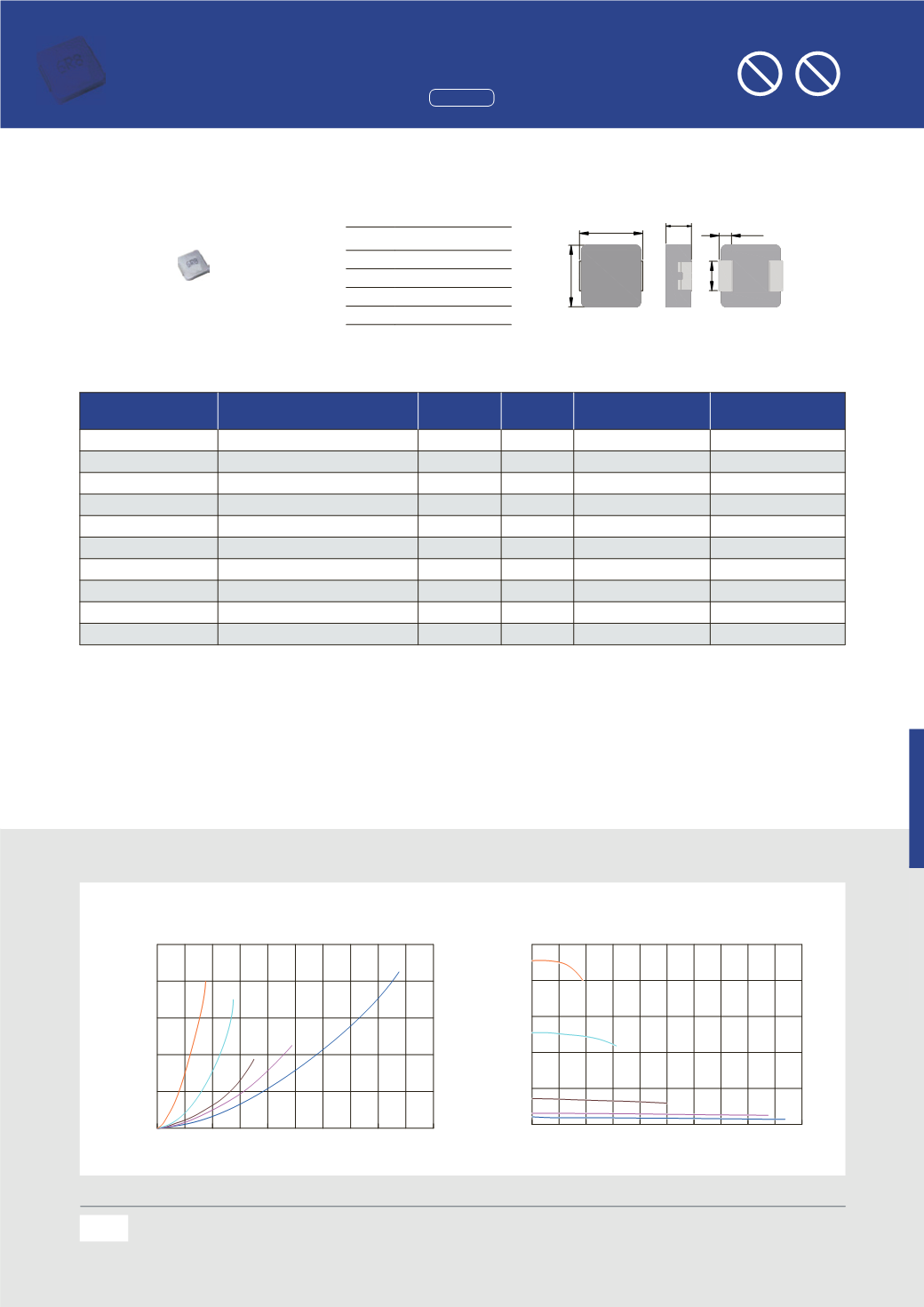

DC Bias Characteristics (Typical)
TMPC 0302H Series
1212
inch
Dimensions
Specifications
Chip Size
Units: mm
A
3.50
±0.20
B
3.20
±0.20
C
1.80
±0.20
D
0.70
±0.20
E
1.20
±0.20
Part Number
Inductance L0 (uH)
@ 0
A
I rms (A)
typ.
I sat (A)
typ.
DCR (m
Ω
)
typ. @25
℃
DCR (m
Ω
)
max. @25
℃
TMPC0302H-R10YG
0.10
±
30%
10.50
14.00
6.6
9.0
TMPC0302H-R47MG
0.47
±
20%
7.00
9.00
19.7
23.0
TMPC0302H-R68MG
0.68
±
20%
5.50
7.00
25.5
29.0
TMPC0302H-1R0MG
1.00
±
20%
4.00
5.00
32.0
38.0
TMPC0302H-2R2MG
2.20
±
20%
3.50
3.70
65.0
75.0
TMPC0302H-3R3MG
3.30
±
20%
3.00
3.50
125
145
TMPC0302H-4R7MG
4.70
±
20%
2.60
3.00
172
200
TMPC0302H-5R6MG
5.60
±
20%
2.20
2.60
205
238
TMPC0302H-6R8MG
6.80
±
20%
1.90
2.20
260
300
TMPC0302H-100MG
10.0
±
20%
1.40
1.60
366
422
Note:
1.
Test frequency : L : 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil temperature rise approximately
Δ
t of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical. (keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
Molding Type High Current Power Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogueare for reference only,TAI-TECH reserves the right toalter or revise the specificationswithout prior
notification.
For the latest specification,please visit ourwebsite:www.tai-tech.com.tw
Molding Type High Current Power Inductors
(1212
inch)
Dimensions
Specifications
Chip Size
A
3.50
±
0.20
B
3.20
±
0.20
C
1.80
±
0.20
D
0.70
±
0.20
E
1.20
±
0.20
Units: mm
DC Bias Characteristics (Typical)
A
B
C
E
D
1
R0
Part Number
Inductance
L0 (uH) @ 0 A
I rms
(
A) typ.
I sat
(
A) typ.
DCR
(
mΩ) typ. @25
℃
DCR
(
mΩ) max. @25
℃
TMPC0302H-R10YG
0.10
±
30%
10.50
14.00
6.6
9.0
TMPC0302H-R47MG
0.47
±
20%
7.00
9.00
19.7
23.0
TMPC0302H-R68MG
0.68
±
20%
5.50
7.00
25.5
29.0
TMPC0302H-1R0MG
1.00
±
20%
4.00
5.00
32.0
38.0
TMPC0302H-2R2MG
2.20
±
20%
3.50
3.70
65.0
75.0
TMPC0302H-3R3MG
3.30
±
20%
3.00
3.50
125
145
TMPC0302H-4R7MG
4.70
±
20%
2.60
3.00
172
200
TMPC0302H-5R6MG
5.60
±
20%
2.20
2.60
205
238
TMPC0302H-6R8MG
6.80
±
20%
1.90
2.20
260
300
TMPC0302H-100MG
10.0
±
20%
1.40
1.60
366
422
Note:
1.
Test frequency : L: 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil temperature rise approximatelyΔt of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical.
(
keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
0
1.6
3.2
4.8
6.4
8
DCCURRENT(A)
0
8
16
24
32
40
TEMP.RISE(
o
C)
TMPC0302H-Series
R47
R68
1
R5
100
5
R6
0
1.6
3.2
4.8
6.4
8
DCCURRENT(A)
0
2.2
4.4
6.6
8.8
11
INDUCTANCE(uH)
TMPC0302H-Series
R47
R68
1
R5
5
R6
100
155
(1212
inch)
Dimensions
Specifications
Chip Size
A
3.50
±
0.20
B
3.20
±
0.20
C
1.80
±
0.20
D
0.70
±
0.20
E
1.20
±
0.20
Units: mm
DC Bias Characteristics (Typical)
A
B
C
E
D
1
R0
Part Number
Inductance
L0 (uH) @ 0 A
I rms
(
A) typ.
I sat
(
A) typ.
DCR
(
mΩ) typ. @25
℃
DCR
(
mΩ) max. @25
℃
TMPC0302H-R10YG
0.10
±
30%
10.50
14.00
6.6
9.0
TMPC0302H-R47MG
0.47
±
20%
7.00
9.00
19.7
23.0
TMPC0302H-R68MG
0.68
±
20%
5.50
7.00
25.5
29.0
TMPC0302H-1R0MG
1.00
±
20%
4.00
5.00
32.0
38.0
TMPC0302H-2R2MG
2.20
±
20%
3.50
3.70
65.0
75.0
TMPC0302H-3R3MG
3.30
±
20%
3.00
3.50
125
145
TMPC0302H-4R7MG
4.70
±
20%
2.60
3.00
172
200
TMPC0302H-5R6MG
5.60
±
20%
2.20
2.60
205
238
TMPC0302H-6R8MG
6.80
±
20%
1.90
2.20
260
300
TMPC0302H-100MG
10.0
±
20%
1.40
1.60
366
422
Note:
1.
Test frequency : L : 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical.
(
keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
0
1.6
3.2
4.8
6.4
8
DC CURRENT(A)
0
8
16
24
32
40
TEMP. RISE(
o
C)
TMPC0302H-Series
R47
R68
1
R5
100
5
R6
0
1.6
3.2
4.8
6.4
8
DC CURRENT(A)
0
2.2
4.4
6.6
8.8
11
INDUCTANCE(uH)
TMPC0302H-Series
R47
R68
1
R5
5
R6
100
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise th
notification.
For the latest specification, please visit our website:
Molding Type High Current Power Inductors
(1212
inch)
Dimensions
Specifications
Chip Size
A
3.50
±
0
B
3.20
±
0
C
1.80
±
0
D
0.70
±
0
E
1.20
±
0
Units: mm
DC Bias Characteristics (Typical)
A
B
C
E
D
1
R0
Part Number
Inductance
L0 (uH) @ 0 A
I rms
(
A) typ.
I sat
(
A) typ.
DCR
(
mΩ) typ. @25
℃
(
TMPC0302H-R10YG
0.10
±
30%
10.50
14.00
6.6
TMPC0302H-R47MG
0.47
±
20%
7.00
9.00
19.7
TMPC0302H-R68MG
0.68
±
20%
5.50
7.00
25.5
TMPC0302H-1R MG
1.00
±
20%
4.00
5. 0
32.0
TMPC0302H-2R2MG
2.20
±
20%
3.50
3.70
65.0
TMPC0302H-3R3MG
3.30
±
20%
3.00
3.50
125
TMPC0302H-4R7MG
4.70
±
20%
2.60
3.00
172
TMPC0302H-5R6MG
5.60
±
20%
2.20
2.60
205
TMPC0302H-6R8MG
6.80
±
20%
1.90
2.20
260
TMPC0302H-100MG
10.0
±
20%
1.40
1.60
366
Note:
1.
Test frequency : L : 100KHz /1.0V.
2.
All test data referenced to 25
℃
ambient.
3.
Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40
℃
(
keep 1min.).
4.
Saturation Current (Isat) will cause L0 to drop 30% typical.
(
keep quickly).
5.
Special inquiries besides the above common used types can be met on your requirement.
0
1.6
3.2
4.8
6.4
8
DC CURRENT(A)
0
8
16
24
32
40
TEMP. RISE(
o
C)
TMPC0302H-Series
R47
R68
1
R5
100
5
R6
0
1.6
3.2
4.8
6.4
DC CURRENT(A)
0
2.2
4.4
6.6
8.8
11
INDUCTANCE(uH)
TMPC0302H-Series
R
R68
1
R5
5
R6
100
155
