DC Bias Characteristics (Typical)
HPC 6045TF Series
2525
inch
Dimensions
Specifications
Chip Size
Units: mm
A
6.00
±0.20
B
6.00
±0.20
C
4.50
max.
D
1.35
±0.20
E
4.00
±0.20
Part Number
Inductance (uH) Test Frequency
(
Hz)
DCR (
Ω
)
±
30%
I sat (A) typ.
I sat (A) max. I rms (A) typ. I rms (A) max.
HPC6045TF-1R0M
1.0
±
20%
1
V100K
0.010
13.00
11.70
7.30
6.57
HPC6045TF-1R5M
1.5
±
20%
1
V100K
0.012
12.00
10.80
6.60
5.94
HPC6045TF-2R2M
2.2
±
20%
1
V100K
0.014
9.50
8.55
5.20
4.68
HPC6045TF-3R3M
3.3
±
20%
1
V100K
0.021
7.80
7.02
4.40
3.96
HPC6045TF-4R7M
4.7
±
20%
1
V100K
0.026
6.80
6.12
4.00
3.60
HPC6045TF-6R8M
6.8
±
20%
1
V100K
0.031
5.70
5.13
3.30
2.97
HPC6045TF-100M
10
±
20%
1
V100K
0.048
4.60
4.14
2.60
2.34
HPC6045TF-150M
15
±
20%
1
V100K
0.068
3.80
3.42
2.20
1.98
HPC6045TF-220M
22
±
20%
1
V100K
0.089
3.30
2.97
1.90
1.71
Note:
Isat
：
Based on inductance change
（
△
L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Based on temperature rise
（
△
T
：
40
℃
typ.
）
Special inquiries besides the above common used types can be met on your requirement.
Sealed Type Power Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogueare for reference only,TAI-TECH reserves the right toalter or revise the specificationswithout prior
notification.
For the latest specification,please visit our website:www.tai-tech.com.tw

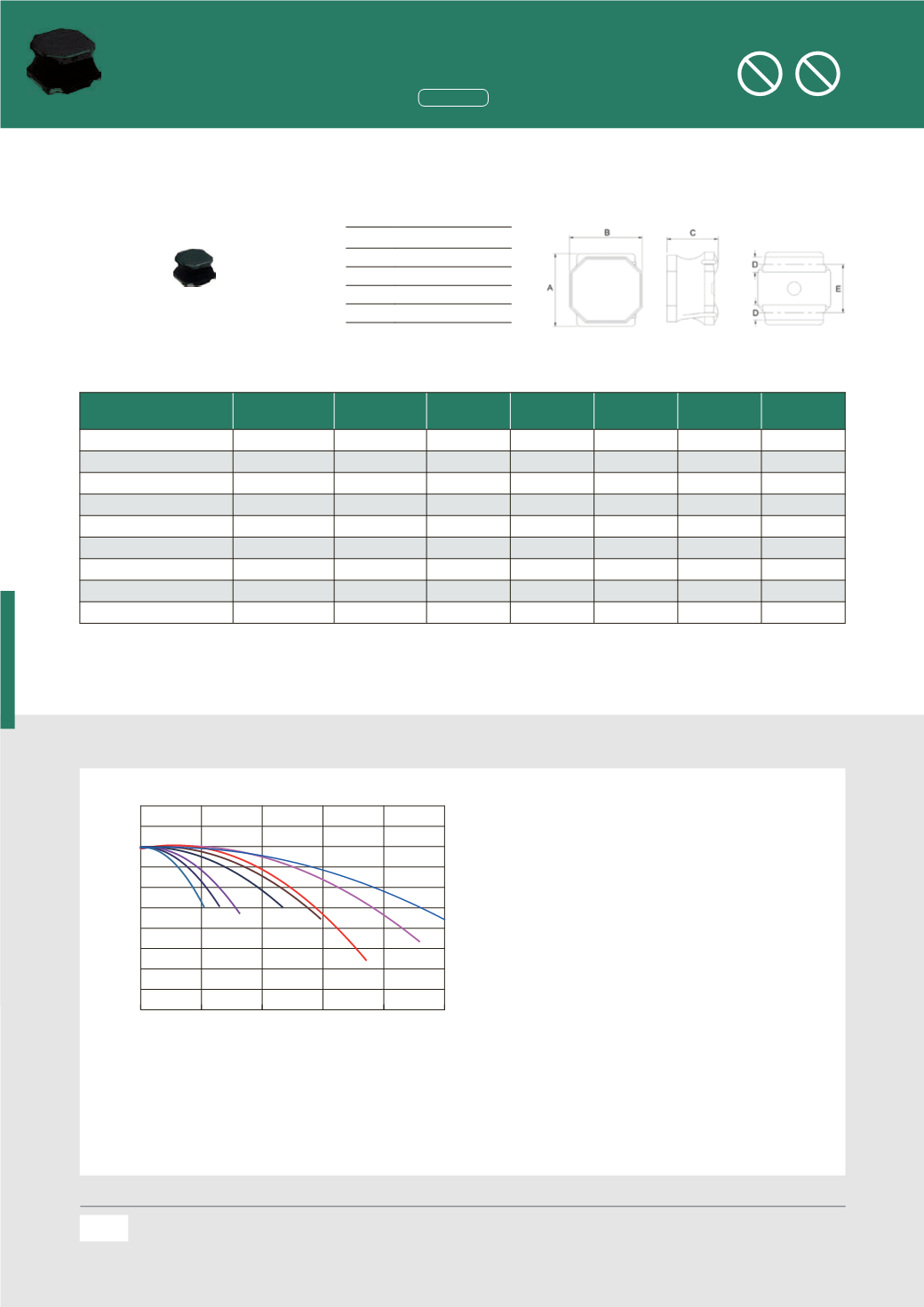

Sealed Type Power Inductors
(2525
inch)
Dimensions
Specifications
DC Bias Characteristics (Typical)
0
2.4
4.8
7.2
9.6
12
DC CURRENT(A)
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
L(%)
HPC6045B-SERIES
1
R0
1
R3
2
R3
3
R0
150
100
4
R5
220
Part Number
Inductance
(
uH)
Test
Frequency
(
Hz)
DCR
(
Ω
)
±
30%
I sat
(
A) typ.
I sat
(
A) max.
I rms
(
A) typ.
I rms
(
A) max.
HPC6045TF-1R0M 1.0±20% 1V100K
0.010
13.00
11.70
7.30
6.57
HPC6045TF-1R5M 1.5±20% 1V100K
0.012
12.00
10.80
6.60
5.94
HPC6045TF-2R2M 2.2±20% 1V100K
0.014
9.50
8.55
5.20
4.68
HPC6045TF-3R3M 3.3±20% 1V100K
0.021
7.80
7.02
4.40
3.96
HPC6045TF-4R7M 4.7±20% 1V100K
0.026
6.80
6.12
4.00
3.60
HPC6045TF-6R8M 6.8±20% 1V100K
0.031
5.70
5.13
3.30
2.97
HPC6045TF-100M 10±20% 1V100K
0.048
4.60
4.14
2.60
2.34
HPC6045TF-150M 15±20% 1V100K
0.068
3.80
3.42
2.20
1.98
HPC6045TF-220M 22±20% 1V100K
0.089
3.30
2.97
1.90
1.71
Note:
Isat
：
Based on inductance change
（
△L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Based on temperature rise
（
△T
：
40
℃ typ.
）
Special inquiries besides the above common used types can be met on your requirement.
Chip Size
A
6.00
±0.20
B
6.00
±0.20
C
4.50
max.
D
1.35
±0.20
E
4.00
±0.20
Units: mm
HPC 6045TF-SERIES
110
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the specifications without prior
notification.
For the latest specification, please visit our website:
(2525
inch)
Dimensions
Specifications
DC Bias Characteristics (Typical)
0
2.4
4.8
7.2
9.6
12
DC CURRENT(A)
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
L(%)
HPC6045B-SERIES
1
R0
1
R3
2
R3
3
R0
150
100
4
R5
220
Part Number
Inductance
(
uH)
Test
Frequency
(
Hz)
DCR
(
Ω
)
±
30%
I sat
(
A) typ.
I sat
(
A) max.
I rms
(
A) typ.
I rms
(
A) max.
HPC6045TF-1R0M 1.0±20% 1V100K
0.010
13.0
11.70
7.30
6.57
HPC6045TF-1R5M 1.5±20% 1V100K
0.012
12.00
10.80
6.60
5.94
HPC6045TF-2R2M 2.2±20% 1V100K
0.014
9.50
8.55
5.20
4.68
HPC6045TF-3R3M 3.3±20% 1V100K
0.021
7.80
7.02
4.40
3.96
HPC6045TF-4R7M 4.7±20% 1V100K
0.026
6.80
6.12
4.00
3.60
HPC6045TF-6R8M 6.8±20% 1V100K
0.031
5.70
5.13
3.30
2.97
HPC6045TF-100M 10±20% 1V100K
0.048
4.60
4.14
2.60
2.34
HPC6045TF-150M 15±20% 1V100K
0.068
3.80
3.42
2.20
1.98
HPC6045TF-220M 22±20% 1V100K
0.089
3.30
2.97
1.90
1.71
Note:
Isat
：
Based on inductance change
（
△L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Ba ed on temperature rise
（
△T
：
40
℃ typ.
）
Special inquiries besides the above common used types can be met on your requirement.
Chip Size
A
6.00
±0.20
B
6.00
±0.20
C
4.50
max.
D
1.35
±0.20
E
4.00
±0.20
Units: mm
HPC 6045TF- ERIES
110
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right t
notification.
For the latest specification, please visit our website:
Sealed Type Power Inductors
(2525
inch)
Dimensions
Specific tions
DC Bias Characteristics (Typical)
0
2.4
4.8
7.2
9.6
12
DC CURRENT(A)
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
L(%)
HPC6045B-SERIES
1
R0
1
R3
2
R3
3
R0
150
100
4
R5
220
Part Number
Inductance
(
uH)
Test
Frequency
(
Hz)
DCR
(
Ω
)
±
30%
I sat
(
A) typ.
I sat
(
A) max.
HPC6045TF-1R0M 1.0±20% 1V100K
0.010
13.00
11.70
HPC6045TF-1R5M 1.5±20% 1V100K
0.012
12.00
10.80
HPC6045TF-2R2M 2.2±2 % 1V100K
0.014
9.50
8.55
HPC6045TF-3R3M 3.3±20% 1V100K
0.021
7.80
7.02
HPC6045TF-4R7M 4.7±20% 1V100K
0. 26
6.80
6.12
HPC6045TF-6R8M 6.8±20% 1V100K
0.031
5.70
5.13
HPC6045TF-100M 10±20% 1V100K
0.048
4.60
4.14
HPC6045TF-150M 15±20% 1V100K
0.068
3.80
3.42
HPC6045TF-220M 22±20% 1V100K
0.089
3.30
2.97
Note:
Isat
：
Based on inductance change
（
△L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Based on temperature rise
（
△T
：
40
℃ typ.
）
Special inquiries besides the above common used types can be met on your requirement.
A
B
C
D
E
Units: mm
HPC 6045TF-SERIES
110
110
All the data listed in this catalogu are for r ference only, TAI-TECH reserv s th right to alter or revis the sp c ca ions without prior noti ation.
For the latest speci cation, please visit our website:
Remark
