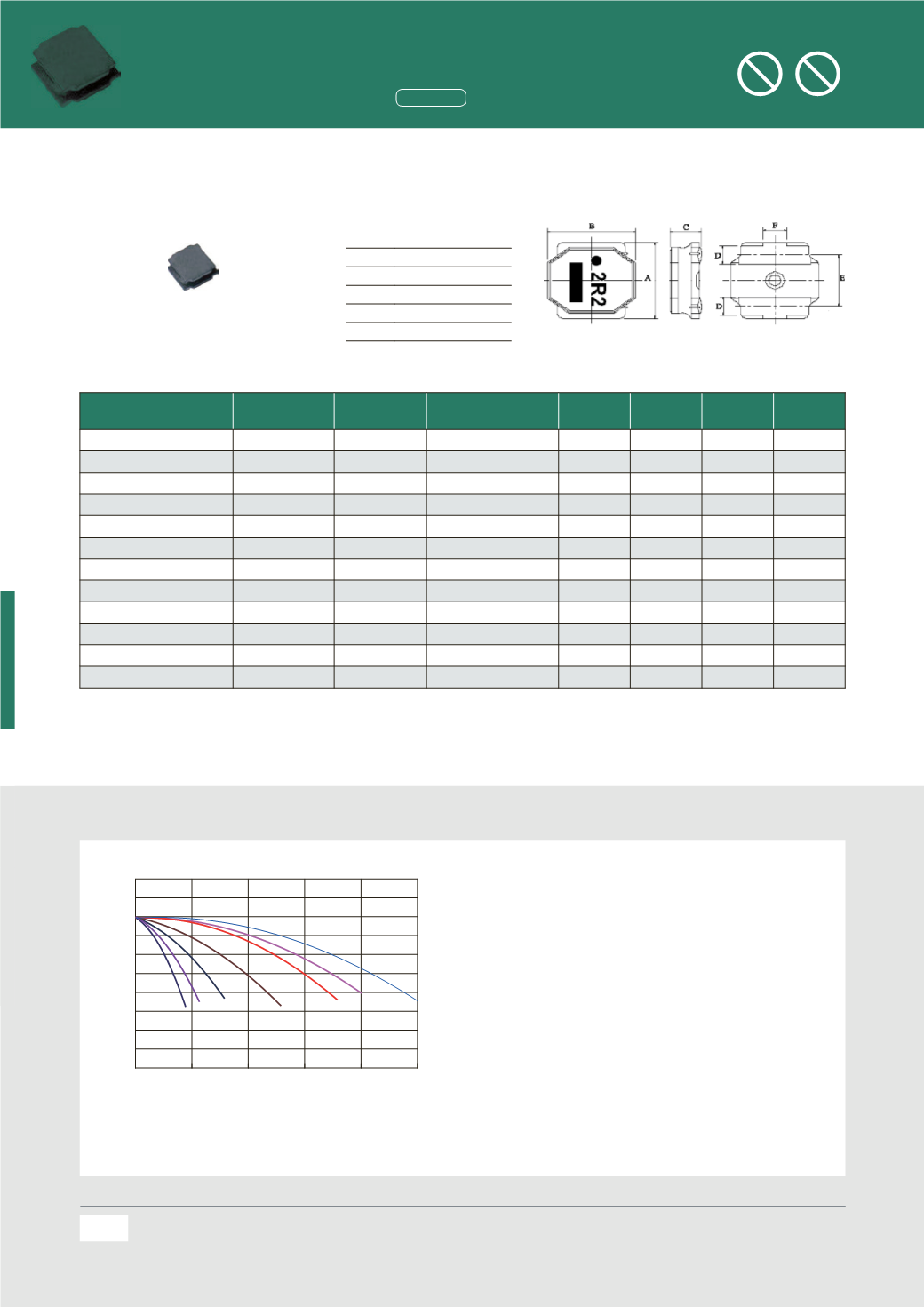

DC Bias Characteristics (Typical)
HPC 6012B Series
2525
inch
Dimensions
Specifications
Chip Size
Units: mm
A
6.00
±0.20
B
6.00
±0.20
C
1.20
max.
D
1.35
±0.20
E
4.00
±0.20
F
2.3
typ.
Part Number
Inductance (uH) Tolerance (%)
Test Frequency (Hz)
SRF (MHz)
min.
DCR (
Ω
)
±
20%
I sat (A)
I rms (A)
HPC6012B-2R5Y
2.5
±
30%
1
V100K
45
0.090
2.10
1.80
HPC6012B-3R3Y
3.3
±
30%
1
V100K
42
0.105
1.80
1.70
HPC6012B-4R7M
4.7
±
20%
1
V100K
36
0.125
1.60
1.55
HPC6012B-5R3M
5.3
±
20%
1
V100K
34
0.125
1.50
1.55
HPC6012B-6R8M
6.8
±
20%
1
V100K
30
0.165
1.30
1.35
HPC6012B-100M
10
±
20%
1
V100K
22
0.200
1.00
1.20
HPC6012B-150M
15
±
20%
1
V100K
18
0.295
0.80
0.80
HPC6012B-220M
22
±
20%
1
V100K
12
0.465
0.76
0.65
HPC6012B-330M
33
±
20%
1
V100K
8
0.580
0.59
0.55
HPC6012B-470M
47
±
20%
1
V100K
6
0.965
0.52
0.46
HPC6012B-680M
68
±
20%
1
V100K
3
1.160
0.44
0.41
HPC6012B-101M
100
±
20%
1
V100K
1
1.670
0.35
0.32
Note:
Isat
：
Based on inductance change
（
△
L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Based on temperature rise
（
△
T
：
40
℃
typ.
）
Sealed Type Power Inductors
Halogen
Halogen-free
Pb
Pb-free
All the data listed in this catalogueare for reference only,TAI-TECH reserves the right toalter or revise the specificationswithout prior
notification.
For the latest specification,please visit our website:www.tai-tech.com.tw
Sealed Type Power Inductors
(1212
inch)
Dimensions
Specifications
Chip Size
A
3.00
±0.10
B
3.00
±0.10
C
1.00
max.
D
1.00
ref.
E
1.00
ref.
Units: mm
DC Bias Characteristics (Typical)
0
0.4
0.8
1.2
1.6
2
DC CURRENT(A)
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
L(%)
HPC3010A-SERIES
1
R2
1
R5
2
R2
3
R3
4
R7
6
R8
100
150
220
Part Number
Inductance
(
uH)
Tolerance
(%)
Test Frequency
(
Hz)
DCR
(
Ω
)
±
20%
I sat
(
A)
I rms
(
A)
HPC3010TF-1R0Y
1.0
±30%
0.1
V/1M
0.055
1.80
2.10
HPC3010TF-1R5Y
1.5
±30%
0.1
V/1M
0.070
1.50
1.90
HPC3010TF-2R2M
2.2
±20%
0.1
V/1M
0.090
1.30
1.70
HPC3010TF-3R3M
3.3
±20%
0.1
V/1M
0.130
1.10
1.50
HPC3010TF-4R7M
4.7
±20%
0.1
V/1M
0.170
0.90
1.30
HPC3010TF-6R8M
6.8
±20%
0.1
V/1M
0.260
0.77
1.00
HPC3010TF-100M
10
±20%
0.1
V/1M
0.350
0.63
0.80
HPC3010TF-150M
15
±20%
0.1
V/1M
0.510
0.54
0.70
HPC3010TF-220M
22
±20%
0.1
V/1M
0.750
0.43
0.60
Note:
Isat
：
Based on inductance change
（
△L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Based on temperature rise
（
△T
：
40
℃ typ.
）
HPC3010TF-SERIES
98
All the data listed in this cata
only, TAI-TECH reserves the right to alter or revise the specifications without prior
notification.
For the latest specification, please visit our website:
Sealed Type Power Inductors
(2525
inch)
Dimensions
Specifications
DC Bias Characteristics (Typical)
0
0.7
1.4
2.1
2.8
3.5
DC CURRENT(A)
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
L(%)
HPC6012B-SERIES
2
R5
3
R3
4
R7
100
220
470
101
Part Number
Inductance
(
uH)
Tolerance
(%)
Test
Frequency
(
Hz)
SRF
(
MHz) min.
DCR
(
Ω
)
±
20%
I sat
(
A)
I rms
(
A)
HPC6012B-2R5Y
2.5
±30% 1V100K
45
0.090
2.10
1.80
HPC6012B-3R3Y
3.3
±30% 1V100K
42
0.105
1.80
1.70
HPC6012B-4R7M
4.7
±20% 1V100K
36
0.125
1.60
1.55
HPC6012B-5R3M
5.3
±20% 1V100K
34
0.125
1.50
1.55
HPC6012B-6R8M
6.8
±20% 1V100K
30
0.165
1.30
1.35
HPC6012B-100M
10
±20% 1V100K
22
0.200
1.00
1.20
HPC6012B-150M
15
±20% 1V100K
18
0.295
0.80
0.80
HPC6012B-220M
22
±20% 1V100K
12
0.465
0.76
0.65
HPC6012B-330M
33
±20% 1V100K
8
0.580
0.59
0.55
HPC6012B-470M
47
±20% 1V100K
6
0.965
0.52
0.46
HPC6012B-680M
68
±20% 1V100K
3
1.160
0.44
0.41
HPC6012B-101M
100
±20% 1V100K
1
1.670
0.35
0.32
Note:
Isat
：
Based on inductance change
（
△L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Based on temperature rise
（
△T
：
40
℃ typ.
）
Chip Size
A
6.00
±0.20
B
6.00
±0.20
C
1.20
max.
D
1.35
±0.20
E
4.00
±0.20
F
2.3
typ.
Units: mm
108
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right
notification.
For the latest specification, please visit our website:
Sealed Type Power Inductors
(2020
inch)
Dimensions
Specifications
DC Bias Characteristics (Typical)
0
1.3
2.6
3.9
5.2
6.5
DC CURRENT(A)
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
L(%)
HPC5012B-SERIES
1
R0
1
R5
2
R2
3
R3
4
R7
6
R8
100
220
Part Number
Inductance
(
uH)
Tolerance
(%)
Test
Frequency
(
Hz)
SRF
(
MHz) min.
DCR
(
Ω
)
±
20%
HPC5012B-1R0Y
1.0
±
30% 1
V100K
100
0.053
HPC5012B-1R5Y
1.5
±
30% 1
V100K
86
0.070
HPC5012B-2R2M
2.2
±
20% 1
V100K
70
0.085
HPC5012B-3R3M
3.3
±
20% 1
V100K
48
0.160
HPC5012B-4R7M
4.7
±
20% 1
V100K
40
0.180
HPC5012B-6R8M
6.8
±
20% 1
V100K
36
0.260
HPC5012B-100M
10
±
20% 1
V100K
26
0.420
HPC5012B-150M
15
±
20% 1
V100K
22
0.670
Note:
Isat
：
Based on inductance change
（
△L/L0
：
≦
-30%
）
@
ambient temp. 25
℃
Irms
：
Based on temperature rise
（
△T
：
40
℃ typ.
）
A
B
C
D
E
F
Units: mm
104
108
All the data listed in this catalogue are for reference only, TAI-TECH reserves the right to alter or revise the speci cations without prior noti cation.
For the latest speci cation, please visit our website:
Remark
